SC-type single-mode fiber port connects over distances of up to 30km.
Ordering Information
$104.08
Quick View
Getting Details
- Ethernet 100Base-FXEthernet 100Base-TXEthernet 10Base-T Transceiver
- 100.0Mbps200MB/s Transfer Rate
- Ethernet, Fast Ethernet, IEEE 802.3, IEEE 802.3u Protocol(s)
- Yes, TAA Compliant

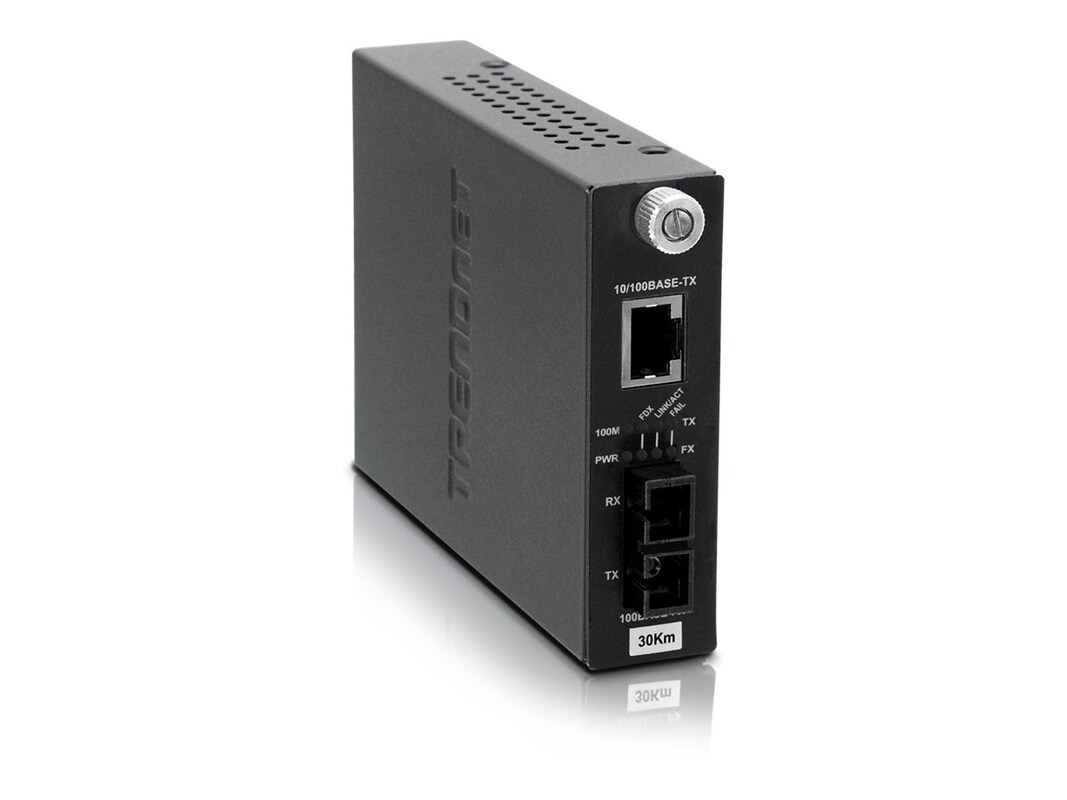

The TFC-110S30i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP and spans distances up to 30km (18.6 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
-
12.50 oz
-
Network Media:
10Base-T: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm
STP100Base-TX: UTP Cat. 5, EIA/TIA-568 100-ohm STP
100Base-FX: 9/125µm or 10/125µm Single-Fiber Optic Cable, up to 30km -
Cabling Type: Ethernet 100Base-FXCabling Type: Ethernet 100Base-TXCabling Type: Ethernet 10Base-TConnectivity Technology: WiredConnector: SC single-mode
-
Converter, documentation
-
Color: BlackForm Factor: ExternalWarranty Period: Limited lifetimeWeight Taxonomy: 12.49oz
-
Networking Type: Fiber media converter
-
Data Transfer Rate: 100MbpsData Transfer Rate: 200MB/s
-
4.7"h x 3.46"w x .98"d
-
(1) 10/100Base-TX RJ-45 Port
(1) 100Base-FX Single-Mode Fiber Port SC Connector -
Power Provided: 7.2
-
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3uRemote Management Protocol: SNMP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.25 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
26121609
