In Stock
- Ships in 1-2 Business Days
Ordering Information
$522.22
Quick View
Getting Details
- HDMI over IP Extender Kit
- Video wall support
- HDMI transmitter & receiver kit extends HDMI signal & RS232 control
- HDMI over Ethernet extender supports resolutions up to 1080p
- HDMI over Cat5 Cat6 extender with mobile app to manage digital signage

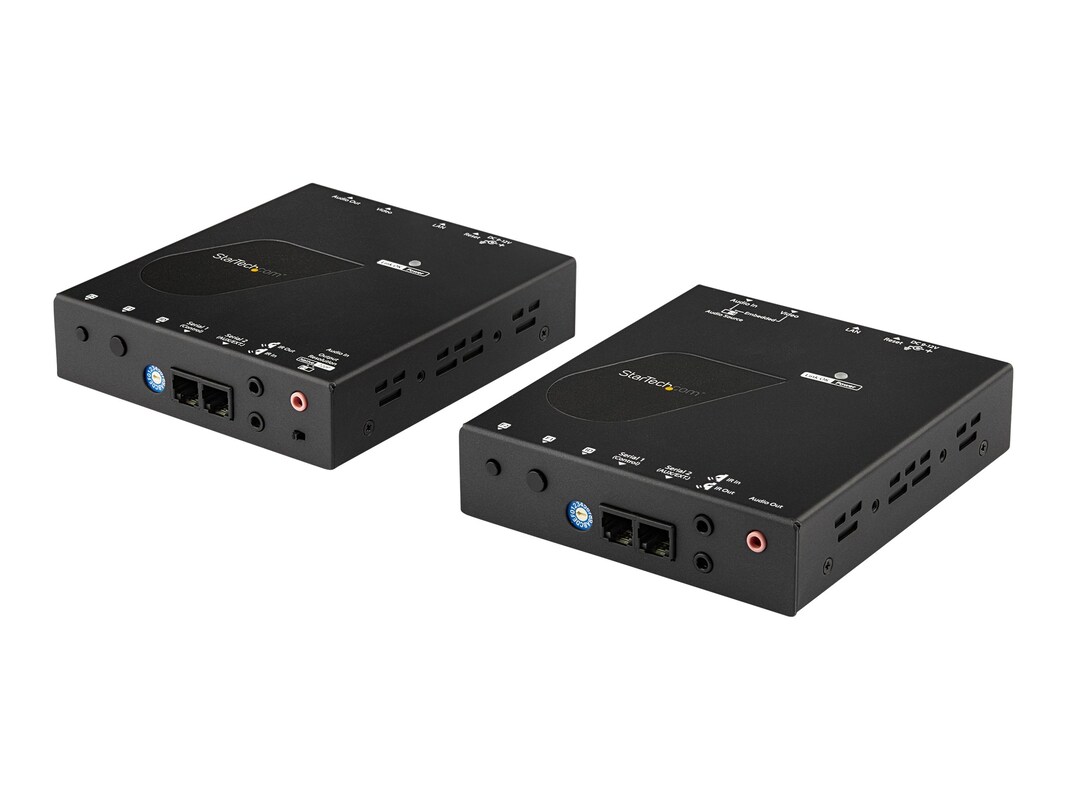

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5 or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
-
Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays.
Create stunning video walls easily using a single or multiple video source with multiple receivers.
Manage and control your digital signage with the intuitive mobile app. -
Connectivity Technology: Wired
-
transmitter, receiver, CAT5 cable, (2) RJ-11 to RS-232 adapters, (2) RJ-11 cables, IR blaster, IR receiver, (2) power adapters, hardware kit, (8) foot pads, documentation
-
Color: BlackForm Factor: ExternalProduct Type: AV ExtenderWarranty Period: 2 yearsWeight Taxonomy: 2.82oz
-
Networking Type: Video/audio/infrared/serial extender
-
Local Unit:
(1) HDMI (19 pin) (F)
(1) RJ-45 (F)
(2) RJ-11 (F)
(2) 3.5 mm Audio (F)
(2) 3.5 mm Mini-Jack (3 Position) (F)
Remote Unit:
(1) HDMI (19 pin) (F)
(1) RJ-45 (F)
(2) RJ-11 (F)
(2) 3.5 mm Audio (F)
(2) 3.5 mm Mini-Jack (3 Position) (F) -
# Power Supplies Supported: 2
-
Supply: 100-240VAC
Consumption: 10W -
Networking Protocol: HDMI
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0.43 lbs
-
Compliant Standards: CECompliant Standards: FCCCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: Yes
-
