Atlas Sound PoE Indoor Wall Mount IP Spea

IP-SDMF-72 indoor speakers are fitted with an 8" (205 mm) coaxial speaker that is optimized for voice intelligibility. Additionally, the IP-SDMF-72 includes an attached 25V/70V transformer on the rear of the speaker and a switch on the front baffle that allows selection between 25V/70V and network. This enables a facility to install the IP-SDM-72 and use an existing analog paging system to deliver messages until the controller and software are installed. Once that is complete, the grille can be removed and the switch changed to network causing the speaker to receive its information from the controller without the need to remove the speaker. This is ideal for retrofit applications or for systems where components are being installed in phases and the speakers must work during the rollout.

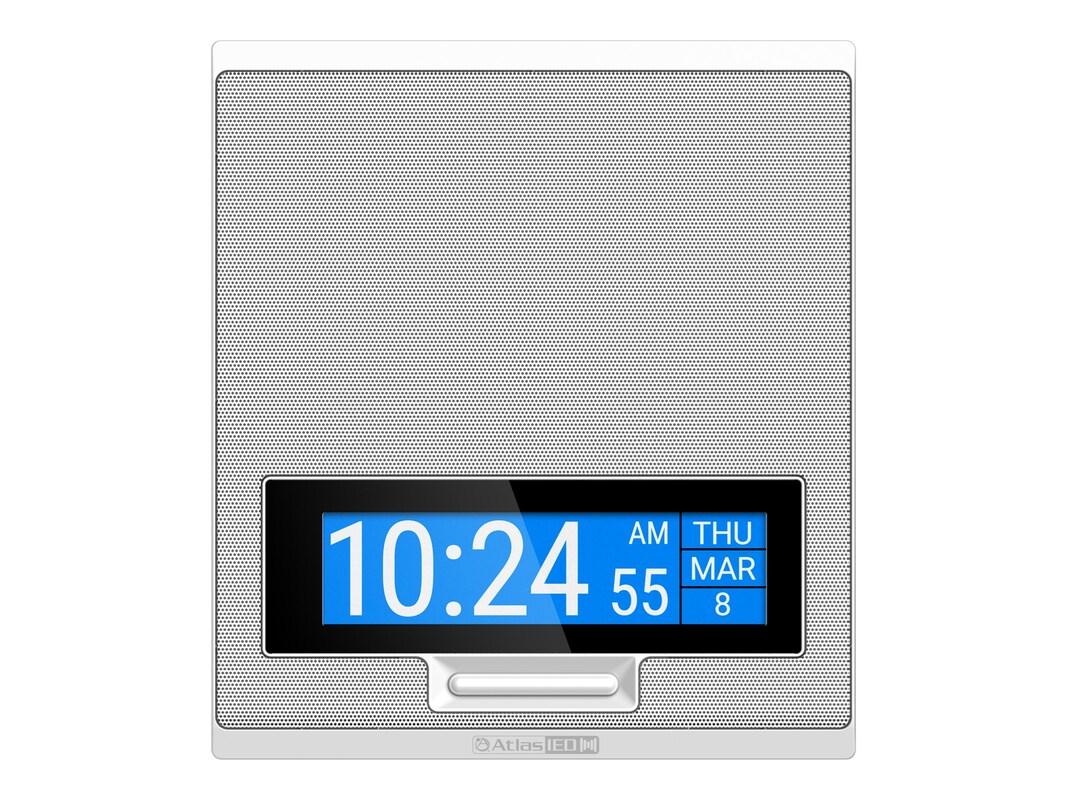

While in Standby, the IP-SDMF-72 displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the IP-SDMF-72 display changes from time to visual notifications by Scrolling text content over the high-resolution LCD digital readout.
The LED flashers located below the display can be used to alert room occupants of an incoming audio message as well as scrolling text message in accordance with ADA compliance.
All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.
