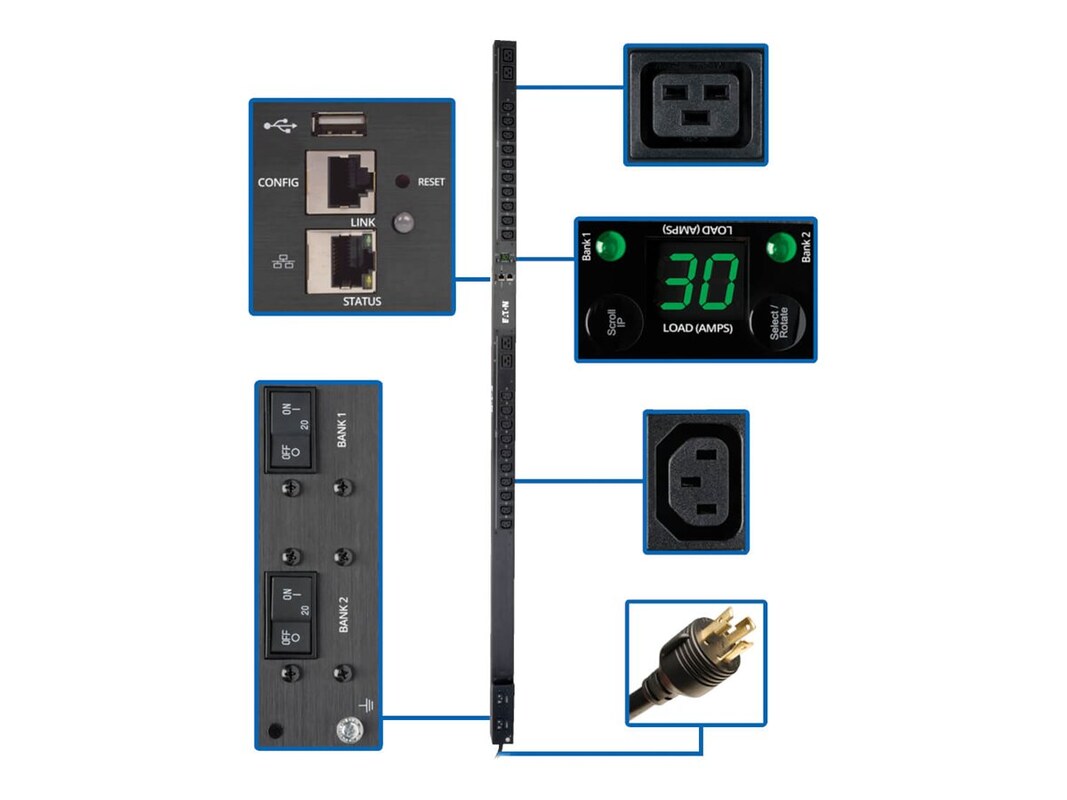

Tripp Lite Monitored Vertical PDU 5.8kW 208 240V 30A, L6-30P Input, (20) C13 (4) C19 Outlets, LX Platform

11.50 lbs

PDU, configuration cable, (24) cable ties, (2) cord retention brackets, rack mounting hardware, bracket accessory for rear-facing outlet configuration, documentation

Features

Distributes Network-Grade Single-Phase Power:
5/5.8kW 208/240V 30A monitored PDU with single-phase input/output
NEMA L6-30P with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements

24 Outlets Distribute AC Power:
(20) C13 and (4) C18 outlets split into 2 separate load banks
Cord retention bracket prevents cables from becoming accidentally disconnected

Digital Ammeter:
Reports total connected equipment load
Supports IP-address self-ID
Rotates 180° for easy reading at either angle

Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required

Broad Communications Compatibility:
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address

Easy 0U Installation in EIA-Standard 19" Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

70"H x 2.2"W x 2.65"D

Output

Output Capacity Details: 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (20) C13; (4) C19
Output Nominal Voltage: 200; 208; 240
Overload Protection: Two 20A breakers protect 12 outlets each
Customized Load Management Receptacles: n/a

Input

PDU Input Voltage: 200; 208; 240
Recommended Electrical Service: 30A 208/240V
Maximum Input Amps: 30
Maximum Input Amps Details: Agency de-rated to 24A continuous
PDU Plug Type: NEMA L6-30P
Input Cord Length (ft.): 10
Input Phase: Single-Phase

User interface, alerts and controls

Front Panel LCD Display: Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
Front Panel LEDs: Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-12; Bank 2 LED indicates the meter is reporting load level for outlets 13-24; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Switches: Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees

Physical

Material of Construction: Metal
Form Factors Supported: 0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical

Environmental

Storage Temperature Range: -15 to 60C / 5 to 140F
Relative Humidity: 5-95% non-condensing
Operating Elevation (ft.): 0-10,000
Operating Elevation (m): 0-3000

Communications
SNMP Compatibility: Via built-in LX Platform Interface
