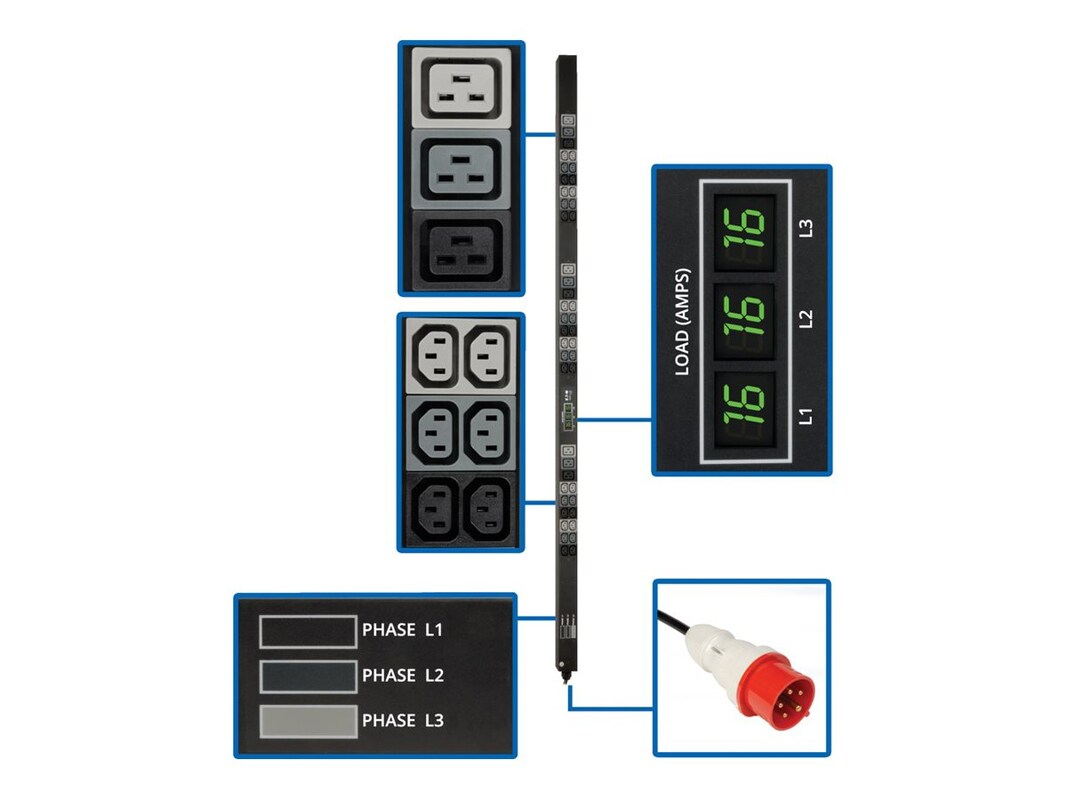

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
-
9.00 lbs
-
Key Features
11.5/11/10.5kW Metered Power Distribution Unit (PDU)
415/400/380V input with IEC-309 Red 16A (3P+N+E) 3-phase input connection
240/230/220V output with (36) C13 & (9) C19 single phase output receptacles
Supports 50/60Hz worldwide applications with CE and North American certifications
0U/1778mm vertical rackmount installation supported
Outlets are arranged in (3) metered (15) outlet load banks.
Included cord retention brackets keep vital network equipment plugged in and continuously powered.
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications; set of (2) 9mm buttons pre-installed, (2) 9mm and (4) 6mm spare buttons included for other mounting applications. -
# Ports: 45Connector: Power IEC 309 EN 60309 16AConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 60309 16A
-
PDU, pre-installed mounting buttons, cord retention brackets, spare installation buttons (2) 9mm (4) 6mm, rack mounting brackets, documentation
-
Attributes: MeteredColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 9.04lbs
-
70"h x 2.2"w x 1.9"d
-
Outlet quantity/type: (45) total; (36) C13 (12 per phase), (9) C19 (3 per phase)
Outlet Type: IEC-C13, IEC-C19
PDU Plug Type: IEC-309 16A RED (3P+N+E)
Input cord length: 6ft (1.8m) -
Power Provided: 11.5kWVoltage Provided: 240V
-
OUTPUT
Output Capacity: 11.5kVA (with 415V input)/11kVA (with 400V input)/10.5kVA (with 380V input) total; 16A per bank (balanced)
Frequency compatibility: 50/60Hz
Output nominal voltage: Single phase 240V (with 415V input), 230V (with 400V input), 220V (with 380V input)
INPUT
Nominal Input Voltages Supported: 380V AC; 400V AC; 415V AC
PDU Input Voltage: 400V; 380V; 415V
Maximum Input Current: 16A
Phase: 3-Phase -
This product is subject to our return policy. Please see our complete return policy for details.
-
13.75 lbs
-
Compliant Standards: CSACompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: UL
-
