- Multimode fiber Ethernet media converter extends & bridges copper networks
- 10/100/1000 (Gigabit), 1000BASE-SX, 850nm, Unmanaged, MMF, SC, RJ45
- Surge + Contact & Air Protection
- Mounting Brackets, LFP, VLAN, ESD
- 550m (1084 ft)
- 2 Year Warranty
- Ethernet 1000Base-SXEthernet 1000Base-TEthernet 100Base-TX Transceiver
- 1Gbps Transfer Rate
- Gigabit Ethernet, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3, IEEE 802.1Q Protocol(s)

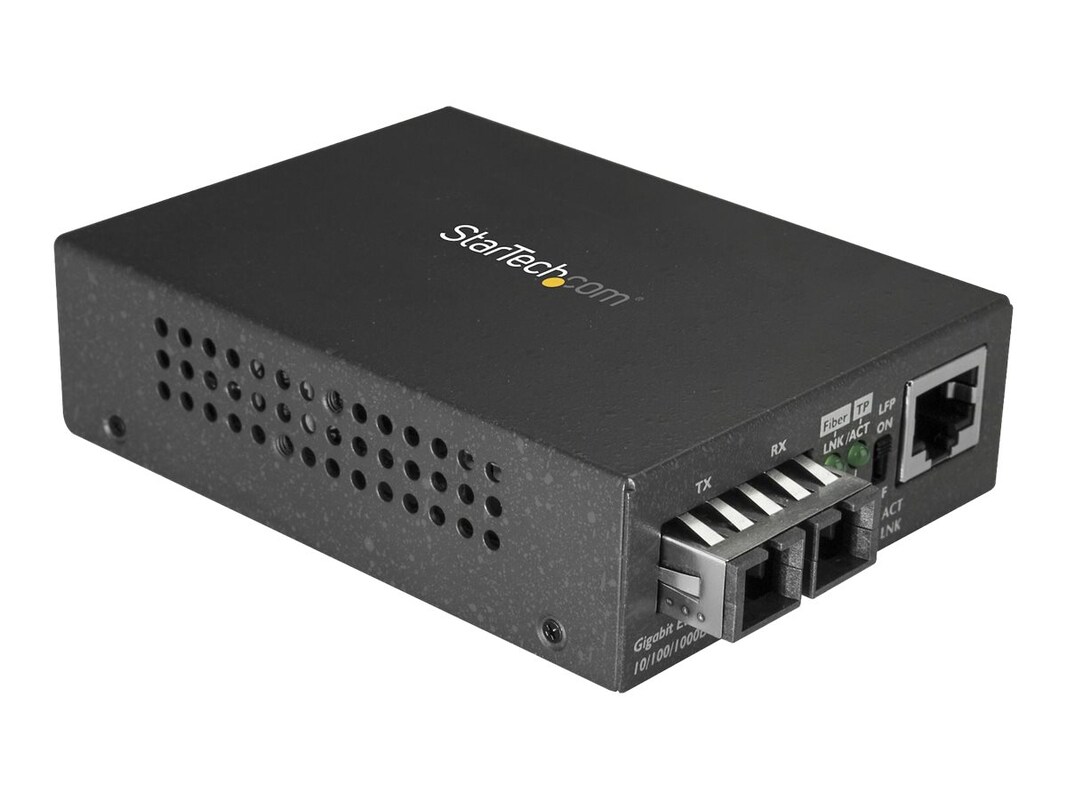

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
-
7.10 oz
-
Cabling Type: Ethernet 1000Base-SXCabling Type: Ethernet 1000Base-TCabling Type: Ethernet 100Base-TXConnectivity Technology: Wired
-
Converter, universal power adapter, documentation
-
Color: BrownForm Factor: ExternalWarranty Period: 2 yearsWeight Taxonomy: 7.05oz
-
Auto MDIX: Yes
Fiber Operating Mode: Full-Duplex
Fiber Type: Multi Mode
Jumbo Frame Support: 9K max.
Max Transfer Distance: 550 m (1804 ft)
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
MTBF: > 50,000 hours at 25°C -
Networking Type: Fiber media converter
-
Data Transfer Rate: 1Gbps
-
1"h x 3.8"w x 2.8"d
-
Center Tip Polarity: Positive
Input Current : 0.5 A
Input Voltage : 100 - 240 AC
Output Current: 2.6 A
Output Voltage: 5 DC
Plug Type: N
Power Consumption: 5W
Power Source: AC Adapter Included -
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3x
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.22 lbs
-
Compliant Standards: CULCompliant Standards: FCCCompliant Standards: RoHSCompliant Standards: WEEE
-
