StarTech.com 4-Port USB 3.2 USB-A 5Gbps PCIe Expansion Card w 4x Independent USB Controllers

Print page
Item#: 41832230 // MFG Part#: P5Q4A-USB-CARD // By: StarTech.com

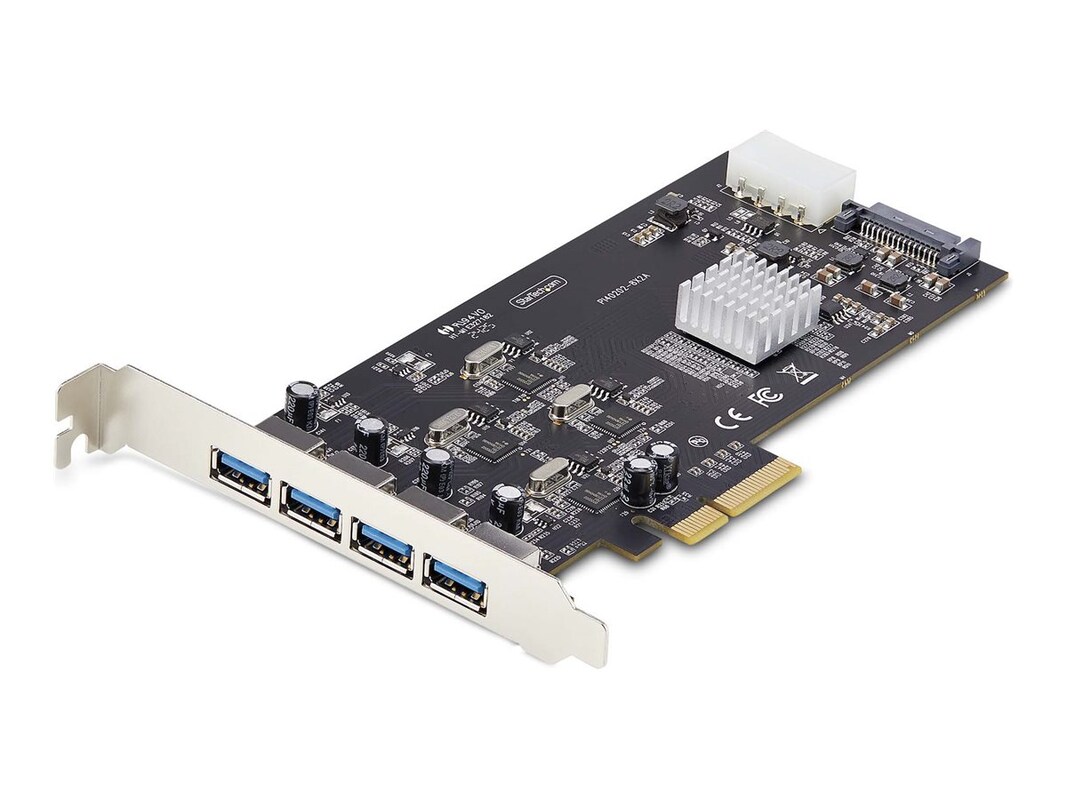

StarTech.com P5Q4A-USB-CARD Main Image from Right-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 1-2 Business Days
Ordering Information
$107.89
Qty:
  • LP4USB Type A15 pin Serial ATA power Connector(s)
  • PCI Express 2.0 x4PCIe 2.0 USB adapter
  • Compatible OS: Linux 2.6.31 or later LTS versions only, Microsoft Windows 7
  • 8
  • 8.1
  • 10
  • 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022
  • USB 3.2 Gen 1 Protocol(s)
  • WEEE, RoHS Compliant

Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection.



When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps.



This USB PCIe expansion card can receive supplemental power through SATA or LP4 connectors. It supports the Battery Charging 1.2 (5V 1.5A) specification and provides up to 5V 2A (10W) on the USB Type-A ports when the bus power from the motherboard is insufficient.



The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. The expansion card supports hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables.
