- Connect, configure, and manage two remote RS232 serial devices, over an IP network

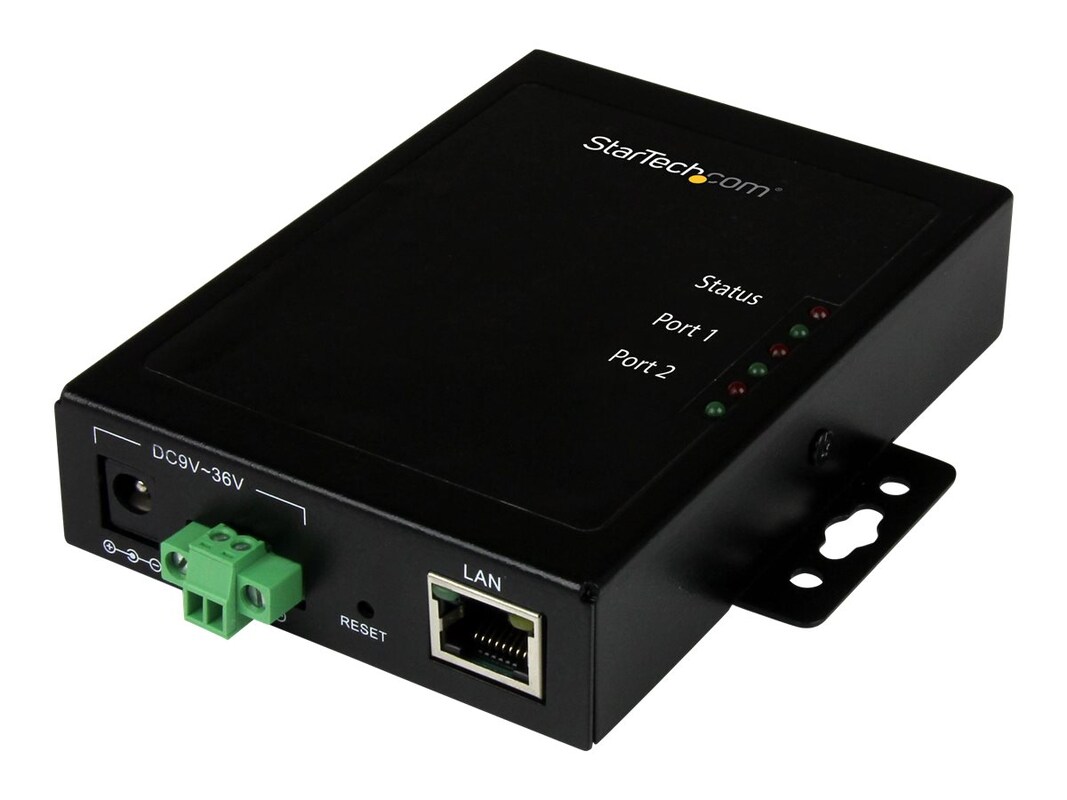

- 2 Port Serial-to-IP Ethernet Device Server
- Wall or surface mountable
- Extended temp. range
- Two RS232 DB9 ports
- Rugged metal housing
- 460.8Kbps Transfer Rate
- Fast Ethernet, IEEE 802.3, IEEE 802.3u Protocol(s)
This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.
-
10.90 oz
-
# Ports: 2Connectivity Technology: Wired
-
Device server, terminal block, universal power adapter, documentation
-
Color: BlackForm Factor: In-wall mountableWarranty Period: 2 yearsWeight Taxonomy: 10.93oz
-
Auto MDIX: Yes
Auto-Negotiation: Yes
Compatible Networks: 10/100 Mbps
Data Bits: 7, 8
Flow Control: XON/XOFF, RTS/CTS, None
Full Duplex Support: Yes
Isolation: 2500 Vrms
Max Baud Rate: 460.8 Kbps
Parity: None, Even, Odd, Space, Mark
Remote Management Ability: Yes
Serial Protocol: RS-232 -
Networking Type: Device server
-
OS Compatibility:
Virtual COM software - Windows Only:
Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit), Vista (32-bit or 64-bit)
Windows Server 2012, 2008 R2
Note: The device server’s hardware is compatible with Mac OS and Linux; however, the provided Virtual COM software is not compatible with these operating systems. When used with a Mac or Linux operating system, the device server can only be configured using the Web-GUI. -
Data Transfer Rate: 460.8Kbps
-
1"h x 3.1"w x 4.4"d
-
(2) DB-9 (9 pin; D-Sub) Male
(1) RJ-45 Female
(1) Terminal Block (2 Wire) -
Center Tip Polarity: Positive
Input Current : 1.5 A
Input Voltage : 100 - 240 AC
Output Current: 3 A
Output Voltage: 12 DC
Power Consumption: 36 W Max
Power Source: AC Adapter Included -
Networking Protocol: EthernetNetworking Protocol: Fast EthernetNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3uNetworking Protocol: RS-232Remote Management Protocol: TelnetTransport Protocol: BOOTPTransport Protocol: DHCPTransport Protocol: ICMP/IPTransport Protocol: TCP/IPTransport Protocol: TelnetTransport Protocol: UDP/IP
-
This product is subject to our return policy. Please see our complete return policy for details.
-
1.48 lbs
-
Compliant Standards: FCCCompliant Standards: RCMCompliant Standards: RoHSCompliant Standards: WEEE
-
OS Required: Apple MacOSOS Required: LinuxOS Required: Microsoft Windows 10OS Required: Microsoft Windows 7OS Required: Microsoft Windows 8OS Required: Microsoft Windows 8.1OS Required: Microsoft Windows Server 2008 R2OS Required: Microsoft Windows Server 2012OS Required: Microsoft Windows Server 2016OS Required: Microsoft Windows Server 2019OS Required: Microsoft Windows VistaOS Required: Microsoft Windows Vista / 7 / 8 / 8.1 / 10
-
