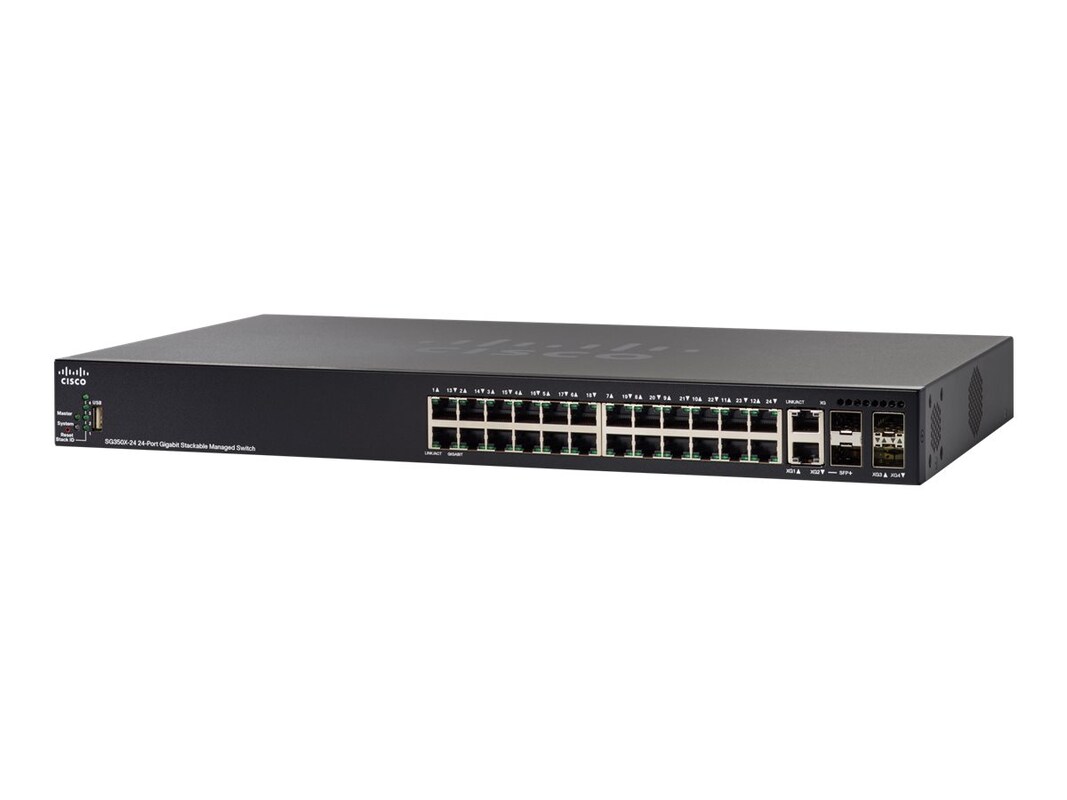

The Cisco SG350X-24MP-K9-NA Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use.
With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.
With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.
-
13.10 lbs
-
# Ports: 16# Ports: 4# Ports: 8
-
Switch, serial cable, rack mounting kit, power supply, (2) fans, documentation
-
Color: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 13.12lbs
-
Features:
Flow control
Layer 3 switching
DHCP support
IGMP snooping
Syslog support
DoS attack prevention
Port mirroring
Weighted Round Robin (WRR) queuing
Broadcast Storm Control
IPv6 support
Multicast Storm Control
Unicast Storm Control
Firmware upgradable
SNTP support
sFlow
Spanning Tree Protocol (STP) support
Rapid Spanning Tree Protocol (RSTP) support
Multiple Spanning Tree Protocol (MSTP) support
DHCP snooping
Access Control List (ACL) support
Quality of Service (QoS)
IP Precedence
DHCP server
MLD snooping
Dynamic ARP Inspection (DAI)
Reset button
Cable Diagnostics Function
Uni-Directional Link Detection (UDLD)
IPv4 support
DHCP relay
Port Security
Remote Switch Port Analyzer (RSPAN)
DHCP client
Energy Efficient Ethernet
Management Information Base (MIB)
Class of Service (CoS)
Generic Attribute Registration Protocol (GARP)
Generic VLAN Registration Protocol (GVRP)
Duplicated Address Detection
Type of Service (ToS)
DiffServ Code Point (DSCP) support
Time-controlled ACLs support
Storm Control
IP source guard
ARP inspection
Bridge protocol data unit (BPDU)
Internet Control Message Protocol (ICMP)
Secure Copy (SCP)
Cisco Discovery Protocol
IGMP querier
VLAN Double Tagging (Q-in-Q)
VLAN mirroring
DNS client
Voice VLAN
VLAN management
Secure Core Technology (SCT)
Private VLAN Edge (PVE)
LLDP-MED
Head-of-line (HOL) blocking
IP/Mac/Port Binding (IPMB)
Secure Sensitive Data (SSD)
Private VLAN
ISATAP tunnel support
RA guard
Specifications:
Switching capacity (64-byte packet size): 95.23 Mpps
Switching capacity: 128 Gbps
MSTP instances: 16
Active VLANs: 4096
IPv4 routes (static): up to 8000
IPv6 routes (static): up to 6000
ACL entries: up to 2000
MAC address table size: 64K entries
Jumbo frame support: 9000 bytes
Max units in a stack: 4
Status indicators: System, link/speed, master, stack
Environmental properties:
MTBF: 144,617 hours
Operating temperature: -4 to 158 F
Operating/storage humidity: 10 to 90%, non-condensing -
RAM (installed): 512MB
-
512MB RAM
256MB Flash
1.5MB Packet buffer
Processor:
X ARM 800MHz -
Networking Type: Switch
-
1.7"h x 17.3"w x 13.8"d
-
I/O:
(16) 1000Base-T RJ-45 30W
(8) 1000Base-T RJ-45 60W
(2) 10GbE LAN RJ-45/SFP+ uplink
(2) 10GBase-X SFP+ uplink
(1) RJ-45, console
(1) GbE LAN, management
(1) USB Type-A
(1) Power in -
(1) Internal power supply
Voltage required: 120 to 230V AC, 47 to 63Hz
PoE Budget: 382W -
Processor Manufacturer: ARMProcessor Speed: 800MHz
-
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: ACLNetworking Protocol: ARPNetworking Protocol: CoSNetworking Protocol: DHCPNetworking Protocol: DSCPNetworking Protocol: Gigabit EthernetNetworking Protocol: ICMPNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1S (MSTP)Networking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1w (RSTP)Networking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3aeNetworking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3anNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: IGMPNetworking Protocol: IGMP v2Networking Protocol: IGMP v3Networking Protocol: IPv4Networking Protocol: IPv6Networking Protocol: MLDNetworking Protocol: PoE+Networking Protocol: QOSNetworking Protocol: RADIUSNetworking Protocol: SNTPNetworking Protocol: SSHNetworking Protocol: SSLNetworking Protocol: TACACSNetworking Protocol: TACACS+Networking Protocol: TFTPRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: RMONRemote Management Protocol: SCPRemote Management Protocol: SNMPRemote Management Protocol: SNMP 2Remote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: SYSLOGRemote Management Protocol: TelnetRemote Management Protocol: TFTPRouting Protocol: CIDRRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: MLDv2Routing Protocol: Policy-based routing (PBR)Routing Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routing
-
Due to manufacturer restrictions, all sales on this item are final.
-
12.75 lbs
-
Compliant Standards: CSA 22.2Compliant Standards: CSA C22.2Compliant Standards: FCC Part 15 ACompliant Standards: IEEE 802.1ab (LLDP)Compliant Standards: IEEE 802.1DCompliant Standards: IEEE 802.1pCompliant Standards: IEEE 802.1QCompliant Standards: IEEE 802.1sCompliant Standards: IEEE 802.1wCompliant Standards: IEEE 802.1xCompliant Standards: IEEE 802.3Compliant Standards: IEEE 802.3abCompliant Standards: IEEE 802.3ad (LACP)Compliant Standards: IEEE 802.3aeCompliant Standards: IEEE 802.3af (PoE)Compliant Standards: IEEE 802.3anCompliant Standards: IEEE 802.3atCompliant Standards: IEEE 802.3azCompliant Standards: IEEE 802.3uCompliant Standards: IEEE 802.3xCompliant Standards: IEEE 802.3zCompliant Standards: UL 60950Compliant Standards: USG v.6Compliant Standards: USGv6
-
43222612
-
Limited Lifetime
-
Limited Lifetime
-
Limited warranty includes next business day response time.
