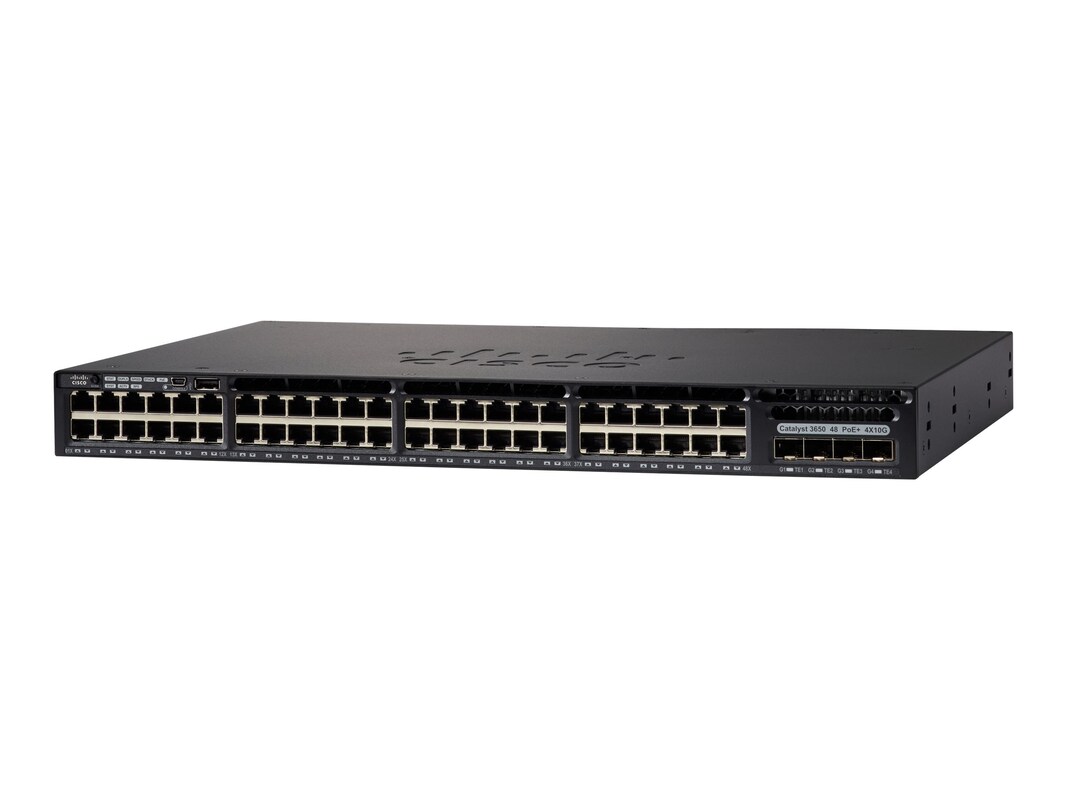

The Cisco Catalyst 3650 Series Switch delivers converged wired and wireless access on a single platform, creating an uncompromised user experience in any workspace. The converged system provides a single platform for wired and wireless network wide visibility for faster troubleshooting, advanced security and quality of service (QoS) control, maximum resiliency with fast stateful recovery, and scale with distributed wired and wireless data plane.
-
# Ports: 2# Ports: 48
-
Switch, rack mounting kit, power supply, documentation
-
Color: BlackForm Factor: DesktopForm Factor: Rack-mountableWarranty Period: Limited lifetime
-
Features:
DHCP support
ARP support
Trunking
VLAN support
IGMP snooping
IPv6 support
Rapid Spanning Tree Protocol (RSTP) support
Multiple Spanning Tree Protocol (MSTP) support
DHCP snooping
Port Aggregation Protocol (PAgP) support
Access Control List (ACL) support
Quality of Service (QoS)
RADIUS support
MLD snooping
Dynamic ARP Inspection (DAI)
EIGRP Stub Routing
Uni-Directional Link Detection (UDLD)
Rapid Per-VLAN Spanning Tree Plus (PVRST+)
Shaped Round Robin (SRR)
Link Aggregation Control Protocol (LACP)
Remote Switch Port Analyzer (RSPAN)
Energy Efficient Ethernet
Virtual Routing and Forwarding (VRF)
Class of Service (CoS)
Flexible NetFlow (FNF)
Spanning-tree Root Guard (STRG)
Specifications:
Forwarding rate: 104.16 Mpps
Stacking bandwidth: 160 Gbps
IPv4 routes: 24000
NetFlow entries: 48000
Virtual interfaces (VLANs): 4094
Switched virtual interfaces (SVIs): 1000
MAC address table size: 32000 entries
Jumbo frame support: 9198 bytes
Status indicators: Port transmission speed, port duplex mode, system, active, status, PoE
Environmental properties:
MTBF: 383,760 hours
Operating temperature: 23 to 113 F
Storage temperature: -40 to 158 F
Operating humidity: 5 to 96%, non-condensing -
4GB RAM
2GB Flash memory -
Networking Type: Switch
-
Cisco IOS LAN Base is pre-installed.
-
Expansion slots:
(1) Stacking module slot
I/O:
(48) 1000Base-T RJ-45 PoE+ 30W
(2) 10GBase-X SFP+ uplink
(1) USB Type-A
(1) Serial RJ-45, console management
(1) RJ-45, management
(1) mini-USB Type-B, management
(2) Power in -
# Power Supplies Installed: 1# Power Supplies Supported: 2Power Provided: 1100
-
(1) 1100W internal power supply, 2 maximum
Voltage required: 120 to 230V AC, 50 to 60Hz
1+1 optional power redundancy
PoE Budget: 775W -
Networking Protocol: 10 Gigabit EthernetNetworking Protocol: ACLNetworking Protocol: ARPNetworking Protocol: CoSNetworking Protocol: DHCPNetworking Protocol: Gigabit EthernetNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1S (MSTP)Networking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1w (RSTP)Networking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3afNetworking Protocol: IEEE 802.3atNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: IGMPNetworking Protocol: IPv6Networking Protocol: MLDNetworking Protocol: PoE+Networking Protocol: QOSNetworking Protocol: RADIUSNetworking Protocol: RIPNetworking Protocol: SSHNetworking Protocol: TACACS+Remote Management Protocol: CLIRemote Management Protocol: RMON 1Remote Management Protocol: RMON 2Remote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: TelnetRouting Protocol: EIGRPRouting Protocol: Policy-based routing (PBR)Routing Protocol: RIP-1Routing Protocol: RIP-2Routing Protocol: RIPngRouting Protocol: Static IP routing
-
Due to manufacturer restrictions, all sales on this item are final.
-
1 lbs
-
Compliant Standards: BSMI CNS 13438 Class ACompliant Standards: CISPR 22 Class ACompliant Standards: CISPR 24Compliant Standards: CSA C22.2 No. 60950-1 Second EditionCompliant Standards: EN 55022 Class ACompliant Standards: EN 55024Compliant Standards: EN 60950-1 Second EditionCompliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: FCC Part 15 ACompliant Standards: GOSTCompliant Standards: ICES-003 Class ACompliant Standards: IEC 60950-1 Second EditionCompliant Standards: IEEE 802.1ab (LLDP)Compliant Standards: IEEE 802.1DCompliant Standards: IEEE 802.1pCompliant Standards: IEEE 802.1QCompliant Standards: IEEE 802.1sCompliant Standards: IEEE 802.1wCompliant Standards: IEEE 802.1xCompliant Standards: IEEE 802.3Compliant Standards: IEEE 802.3abCompliant Standards: IEEE 802.3ad (LACP)Compliant Standards: IEEE 802.3af (PoE)Compliant Standards: IEEE 802.3atCompliant Standards: IEEE 802.3uCompliant Standards: IEEE 802.3xCompliant Standards: IEEE 802.3zCompliant Standards: ISO 7779Compliant Standards: KCCCompliant Standards: KN22 Class ACompliant Standards: KN24Compliant Standards: NOMCompliant Standards: RoHSCompliant Standards: UL 60950-1 Second EditionCompliant Standards: VCCI Class A
-
43222612
-
Limited Lifetime
-
Limited Lifetime
-
Warranty includes next business day response time and 90-day phone consultation technical support.
