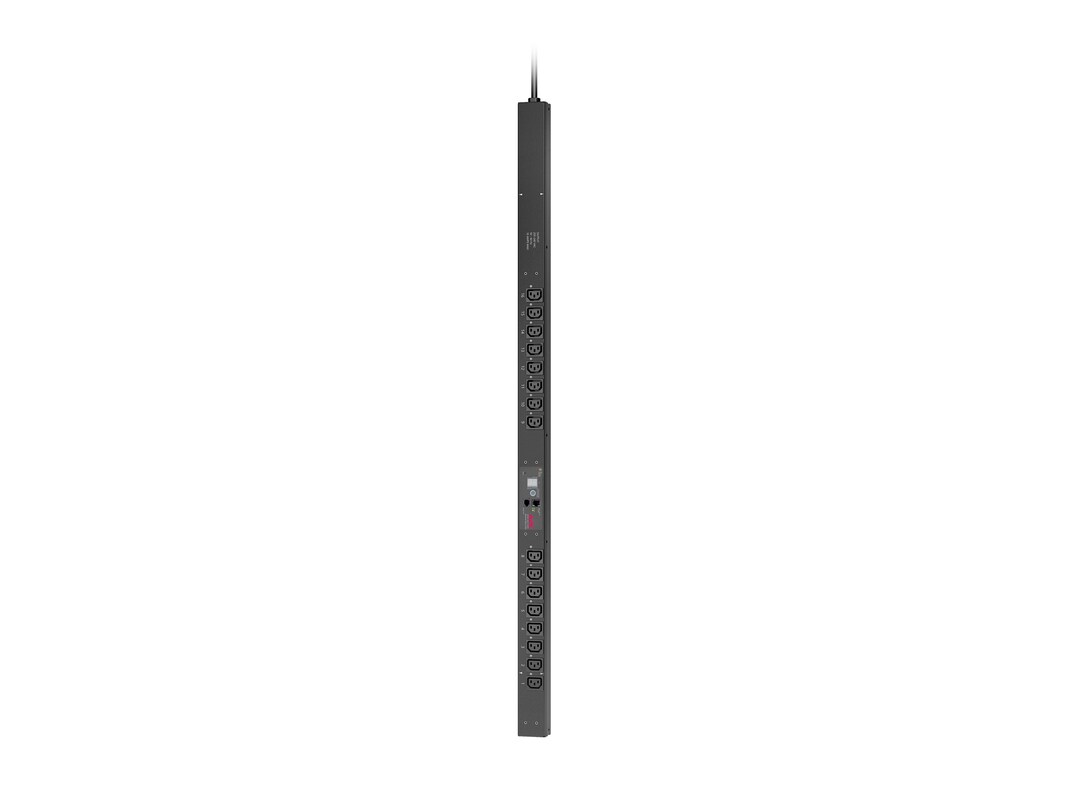

Switched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.
-
9.50 lbs
-
Flash Upgradeable:
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Remote Management Capabilities:
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. -
# Ports: 16Connector: Power IEC 320 EN 60320 C13Connector: Power IEC 320 EN 60320 C14Connector: Power IEC 60320 C14
-
PDU, cord retention bracket(s), rack mounting brackets, tool-less mounting ki, documentation
-
Attributes: SwitchedColor: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 0.15oz
-
49"H x 2.19"W x 1.73"D
-
Voltage Provided: 230VVoltage Provided: AC 230V
-
Nominal Output Voltage: 230V
Overload Protection: No
Maximum Total Current Draw: 10
Output Connections: (16) IEC 320 C13 (Battery Backup)
Nominal Input Voltage: 200V , 208V , 230V
Input frequency: 47 - 63 Hz
Input Connections: IEC-320 C14
Cord Length: 10ft ( 3.05meters )
Acceptable Input Voltage: 200-240VAC
Number of Power Cords: 1
Maximum Input Current: 10A
Maximum Line Current: 10A
Operating Temperature: 23 - 113 F ( -5 - 45 C )
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -25 - 65 C
Storage Relative Humidity: 5 - 95 %
Storage Elevation: 0-50000ft ( 0-15000meters ) -
Remote Management Protocol: HTTPRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
11.5 lbs
-
Compliant Standards: CECompliant Standards: EN 55022 Class ACompliant Standards: EN 55024Compliant Standards: EN 61000-3-2Compliant Standards: EN 61000-3-3Compliant Standards: EN55024Compliant Standards: GOSTCompliant Standards: IRAMCompliant Standards: REACHCompliant Standards: RoHSCompliant Standards: VDE
-
