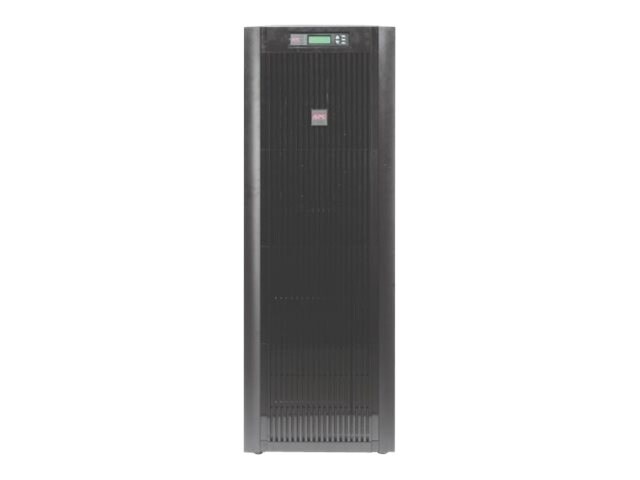

The Smart-UPS VT offers IT professionals the performance and legendary reliability of the award winning Smart-UPS family. Expanding up through to small data centers, remote offices, Point of Sale applications and laboratory equipment Smart-UP VT is ideal for entry level and performance power protection needs. Smart-UPS VT features double-conversion on-line design and offers internal and external batteries in a user friendly, scalable design. The UPS includes dual mains input for increased availability and a built-in maintenance bypass breaker. Start-up Service 5x8 is also included.
-
913.00 lbs
-
Communications and Management
Interface Ports: DB-9 RS-232, Smart-Slot
Pre-Installed SmartSlot Card: AP9619
Control panel: Multi-function LCD status and control console
Audible Alarm: Audible and visible alarms prioritized by severity
Emergency Power Off (EPO): Yes -
# Ports: 3Communication Interface: EthernetCommunication Interface: Serial (RS-232)Connector: Hardwire 5-wire (3PH + N + G)Connector: Power Hard Wire 4-wire (3PH + G)Connector: Power Hard Wire 5-wire (3PH + N + G)
-
UPS, (2) battery modules (installed), bolt-down brackets, network management card, power modules (installed), Start-up service, software, documentation
-
Attributes: Double conversion onlineColor: BlackEnclosure Type: InternalForm Factor: ExternalForm Factor: TowerWarranty Period: 1-year warrantyWeight Taxonomy: 914.91lbs
-
59" x 22"w x 32"d
-
Output Connections
(1) Hard Wire 5-wire (3PH + N + G)
(1) Hard Wire 5-wire (3PH + N + G)
(1) Screw Terminals
Input Connection
Hard Wire 5-wire (3PH + N + G) -
Battery Run Time (max): 18.5minPower Capacity (VA): 10000VAPower Provided: 8kWPower Provided: 8000WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: 192VVoltage Provided: 400V
-
Output
Output Power Capacity: 8kW/10kVA
Maximum Configurable Power: 8kW/10kVA
Nominal Output Voltage: 400V 3-PH
Output Voltage Note: Configurable for 380, 400 or 415 V 3 Phase nominal output voltage
Efficiency at Full Load: 95.20%
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 47-53Hz for 50Hz nominal
Crest Factor: Unlimited
Waveform Type: Sine wave
Bypass: Built-in Maintenance Bypass, Built-in Static Bypass
Input
Nominal Input Voltage: 400V 3-PH
Input Frequency: 47-70Hz (auto sensing)
Input voltage range for main operations: 304-477V
Other Input Voltages: 380, 415V
Maximum Input Current: 14A
Input Breaker Capacity: 20A
Batteries and Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte
Included Battery Modules: (2)
Available Battery Slots: (2)
Typical recharge time: (5) hours
RBC Quantity: (2)
Nominal Battery Voltage: +/-192V (split battery referenced to neutral)
End of Discharge Battery Voltage: +/-154V -
Remote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: SNMPRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
981 lbs
-
Compliant Standards: C-TickCompliant Standards: EN 50091-2Compliant Standards: IEC 60529 IP20Compliant Standards: IEC 61000-3-2Compliant Standards: IEC 61000-3-3Compliant Standards: IEC 62040-3Compliant Standards: ISO 14001Compliant Standards: ISO 9001
-
39121011
-
1 Year
-
1 Year
-
Startup service
