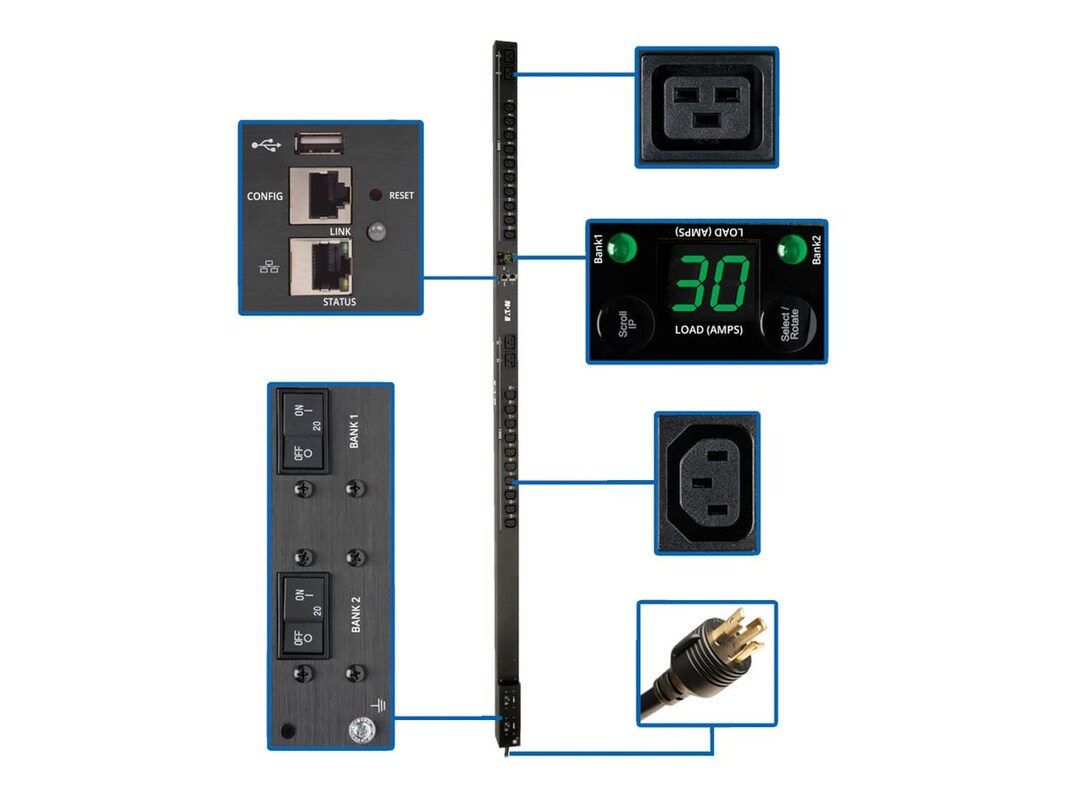

the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features twenty-four switched outlets (twenty C13 and four C19). LEDs indicate each outlet’s on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
-
11.50 lbs
-
# Ports: 24Connector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power NEMA L6-30Connector: Power NEMA L6-30 (M)
-
PDU, configuration cable, (24) cable ties, (2) cord retention brackets, rack mounting hardware, bracket accessory for rear-facing outlet configuration, documentation
-
Color: BlackForm Factor: 0U RackmountForm Factor: Rack-mountableWarranty Period: 2 yearsWeight Taxonomy: 11.51lbs
-
Features
Distributes Network-Grade Single-Phase Power:
5/5.8kW 208/240V 30A switched PDU with single-phase input/output
Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
NEMA L6-30P plug with 10 ft. cord connects to compatible AC power source
Firmware upgrades support future product enhancements
24 Switched Outlets Distribute AC Power:
(20) C13 and (4) C19 outlets split into 2 separately breakered load banks
Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
Individual LEDs indicate outlets’ power status
Digital Ammeter:
Reports load level on each bank and total PDU output
Supports IP-address self-ID
Rotates 180 degrees for easy reading at either angle
Built-In LX Platform Interface:
Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
No Java required
Broad Communications Compatibility:
Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
Supports automatic and manual assignment of IP address
Easy 0U Installation in EIA-Standard 19 in. Racks:
Mounts vertically using included toolless buttons or rack-mounting brackets
Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
Cord retention brackets prevent cables from becoming accidentally disconnected
TAA-Compliant:
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases -
70"H x 2.19"W x 2.65"D
-
Power Provided: 5.8kWVoltage Provided: 208VVoltage Provided: 240VVoltage Provided: AC 208/240V
-
Output
Output Capacity Details: 5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility: 50 / 60 Hz
Output Receptacles: (20) C13; (4) C19
Output Nominal Voltage: 200; 208; 240
Overload Protection: Two 20A breakers protect 12 outlets each
Customized Load Management Receptacles: Each outlet is individually controllable via remote interface
Input
PDU Input Voltage: 200; 208; 240
Recommended Electrical Service: 30A 208/240V
Maximum Input Amps: 30
Maximum Input Amps Details: Agency de-rated to 24A continuous
PDU Plug Type: NEMA L6-30P
Input Cord Length (ft.): 10
Input Phase: Single-Phase
User interface, alerts, and controls
Front Panel LCD Display: Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-12; BANK 2: Outlets #13-24; BANK 3: All outlets combined)
Front Panel LEDs: 24 power availability LEDs confirm power off/on status for each built-in outlet
Switches: Pushbutton scroll button enables local power consumption display of each load bank, display rotate and display IP address functions
Physical
Form Factors Supported: 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor: 0U; Vertical
Environmental
Relative Humidity: 0-95% non-condensing
Communications
SNMP Compatibility: Via built-in LX Platform Interface -
Remote Management Protocol: SNMPRemote Management Protocol: SSHRemote Management Protocol: Telnet
-
This product is subject to our return policy. Please see our complete return policy for details.
-
14.3 lbs
-
Compliant Standards: FCC Class A certifiedCompliant Standards: NOMCompliant Standards: RoHSCompliant Standards: TAACompliant Standards: UL 60950-1Compliant Standards: Yes
-
