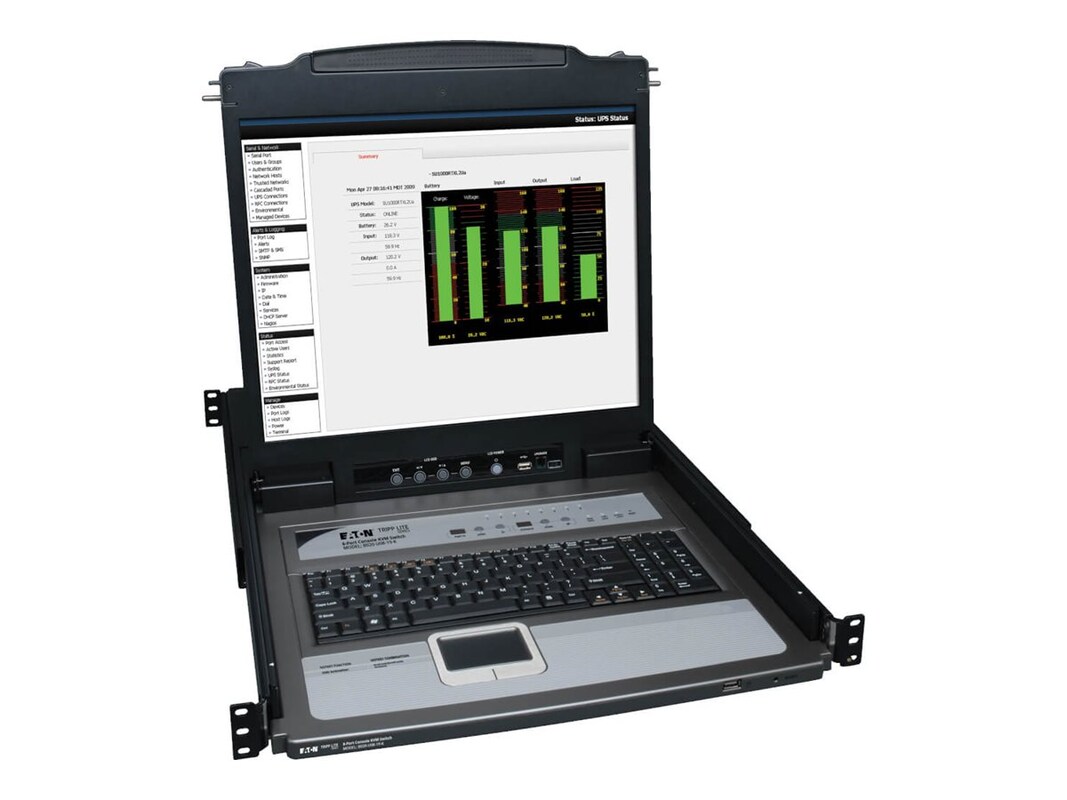

Tripp Lite's B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. The B020-U08-19-K has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display(OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers. The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.
-
30.60 lbs
-
Audio Output Type: None
-
Features
Combines an 8-port KVM switch, 19" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
Mounts into 19"-wide rack, 26"-38" deep
Control up to 8 servers from a single, easily accessible console - ideal when rack space is at a premium
Includes (8) P778-Series cables that support computers with either PS/2 or USB connections
Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server
Switch easily between the (16) ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
Hot pluggable; add or remove computers without having to power down the switch
Auto-scan mode automatically sequences through all active ports that are accessible to the user
Extra-wide display makes multitasking easier
Supports video resolutions up to 1280 x 1024
DDC emulation allows optimal output to the LCD
Enhances security by limiting access to an administrator and up to 4 local users
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed
Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a Tripp Lite B051-000 IP Remote Access Unit
An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers
Compatible with all major operating systems for easy integration into your existing structure
Firmware is upgradable with included cable and utility
Heavy-duty steel housing stands up to frequent use
Certifications: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Approvals: UL, cUL, CE, FCC, RoHS
-
# Ports: 8Connector: DB25 (M)Connector: HD-15 (F)Connector: PS/2Connector: RJ-45Connector: USB Type A (M)Connector Type: PS/2Connector Type: USBConnector Type: VGAConnector Type: VGA (HD-15)
-
Console, Cable Kits, Power Cable, Grounding Wire, Rackmount Kit, documentation
-
Color: BlackForm Factor: InternalInput Device Type: KeyboardInput Device Type: TouchpadWarranty Period: 1-year warrantyWeight Taxonomy: 30.64lbs
-
Networking Type: KVM switch
-
1.75"h x 17"w x 27"d
-
This product is subject to our return policy. Please see our complete return policy for details.
-
38.6 lbs
-
Compliant Standards: CSACompliant Standards: FCCCompliant Standards: FCC Part 15 ACompliant Standards: IEC 60950-1Compliant Standards: RoHSCompliant Standards: UL 60950-1
-
OS Required: Apple MacOSOS Required: LinuxOS Required: Microsoft Windows 2000OS Required: Microsoft Windows VistaOS Required: Microsoft Windows Vista / 2000 / XPOS Required: Microsoft Windows XPOS Required: SunSoft Solaris
-
43211601
-
Display Size: 19inDisplay Type: KVM consoleNative Resolution: 1280 x 1024
