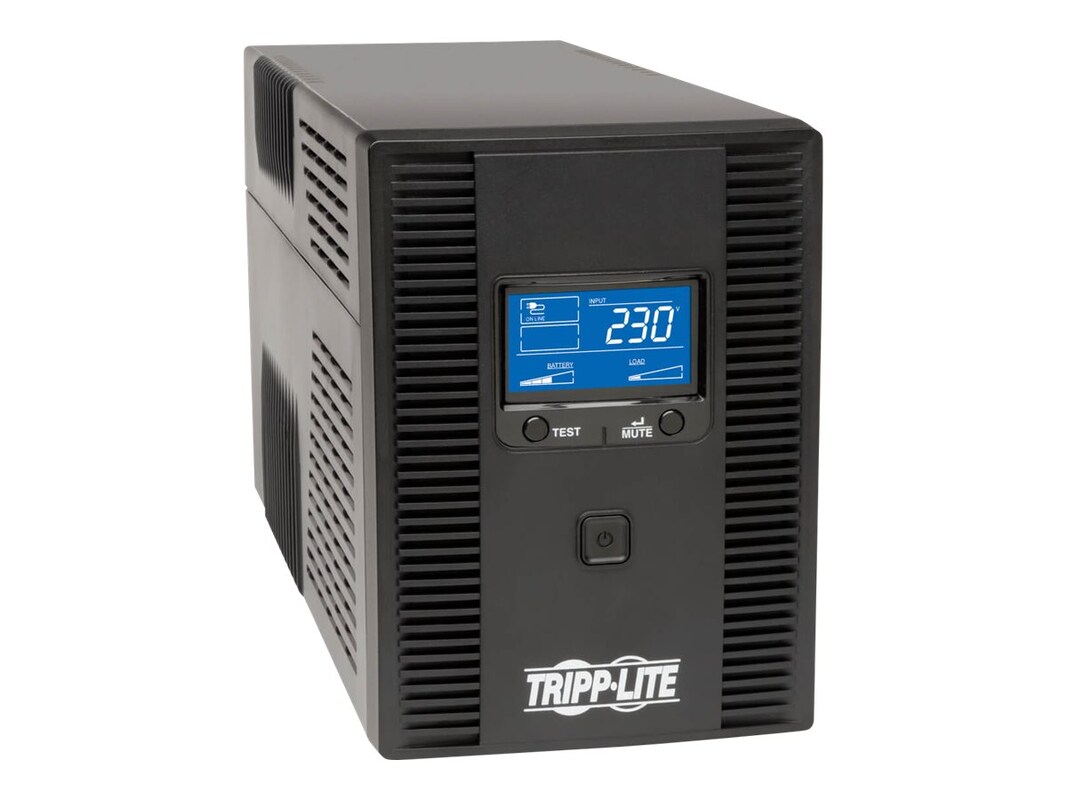

Tripp Lite Int'l 1500VA LCD Tower Line-Interactive 230V UPS, C14 Input, (8) C13 Outlets, USB Port (SMX1500LCDT)

24.70 lbs

Key Features

SMX1500LCDT line interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support
(8) C13 outlets, (6) with UPS and surge suppression for vital components and (2) additional outlets with surge-only protection for devices not requiring battery support
C14 AC inlet connection, includes one 6ft/1.8m C13 to C14 line cord
Maintains operation of connected equipment to prevent data loss, equipment damage and downtime associated with power failures and severe voltage fluctuations
Line Interactive Automatic Voltage Regulation (AVR) circuits continuously correct brownouts and overvoltages from 170 to 280V without using battery power
Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
Offers 10 minutes runtime at 50% load (450 watts)
Supports an entry level desktop system with LCD screen for up to 90 minutes during power failures (75 watts)
LCD screen continuously reports operating mode and battery charge level, plus additional UPS and site power data, such as input & output voltage, frequency, load percentage, load watts, battery voltage and estimated runtime in minutes
USB monitoring port enables optional unattended system shutdown using PowerAlert UPS management software available via free download from www.tripplite.com
HID-compliant USB interface also enables automatic integration with built-in power management and auto shutdown features of Windows and Mac OSX
Built-in data line surge suppression offers protection for equipment with single-line dialup or network ethernet connection

LEDS ALARMS & SWITCHES

Front panel display: LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes
Alarms: Audible alarm indicates power-failure and low-battery conditions
Alarm cancel operation: Power-fail alarm can be silenced using alarm-cancel switch
Switches: Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test

COMMUNICATIONS

Communications interface: USB (HID enabled)
Network monitoring port description: Supports detailed monitoring of UPS and site power conditions
PowerAlert software: Free download from www.tripplite.com
Communications cable: USB cabling included
WatchDog compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time: 6 milliseconds
Low voltage transfer to battery power (setpoint): 170V (factory setting), 175V (medium setting), 180V (narrow setting)
High voltage transfer to battery power (setpoint): 280V (factory setting), 275V (medium setting), 270V (narrow setting)

SPECIAL FEATURES

Cold Start (startup in battery mode during a power failure): Cold-start operation supported
High availability UPS features: hot-swap batteries
Green & high efficiency features: Greater than 95% efficiency - GREEN UPS

CERTIFICATIONS

UPS Certifications: CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia)
UPS Certification details: EN62040-1, EN62040-2 Class A

UPS, USB cabling, power cord (1.8m), documentation

8"h x 5.75"w x 15.5"d

Built-in UPS output receptacles: (8) C13 outlets
Surge suppression outlets: (6) UPS, (2) surge-only
UPS input connection type: C14 inlet
UPS Input cord length: 6ft (1.8m)

OUTPUT

Output Capacity: 1500VA/900W
Nominal Output Voltage Supported: 230V
Frequency compatibility: 50/60Hz (auto-selectable)
Output voltage regulation (Battery mode): +/- 5%
Output AC waveform (AC mode): Sine wave
Output AC waveform (battery mode): PWM sine wave

INPUT

Rated input current (at maximum load): 9A
Nominal Input Voltage Supported: 230VAC
Input circuit breaker: 10A fuse

BATTERY

Full load runtime: 2.3 minutes (900 watts)
Half load runtime: 10 minutes (450 watts)
DC system voltage: 24VDC
Battery recharge rate (included batteries): Less than 8 hours from 10% to 90%
Replacement battery cartridge (internal UPS battery replacement): RBC51 (requires 2)

VOLTAGE REGULATION

Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150V
Overvoltage correction: Input voltages between 247 and 280V are reduced by 15%
Undervoltage correction: Input voltages between 170 and 207V are boosted by 18%

SURGE / NOISE SUPPRESSION

UPS AC suppression rating: 455 Joules
UPS AC suppression response time: Instantaneous
UPS Dataline suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC noise suppression: Yes
