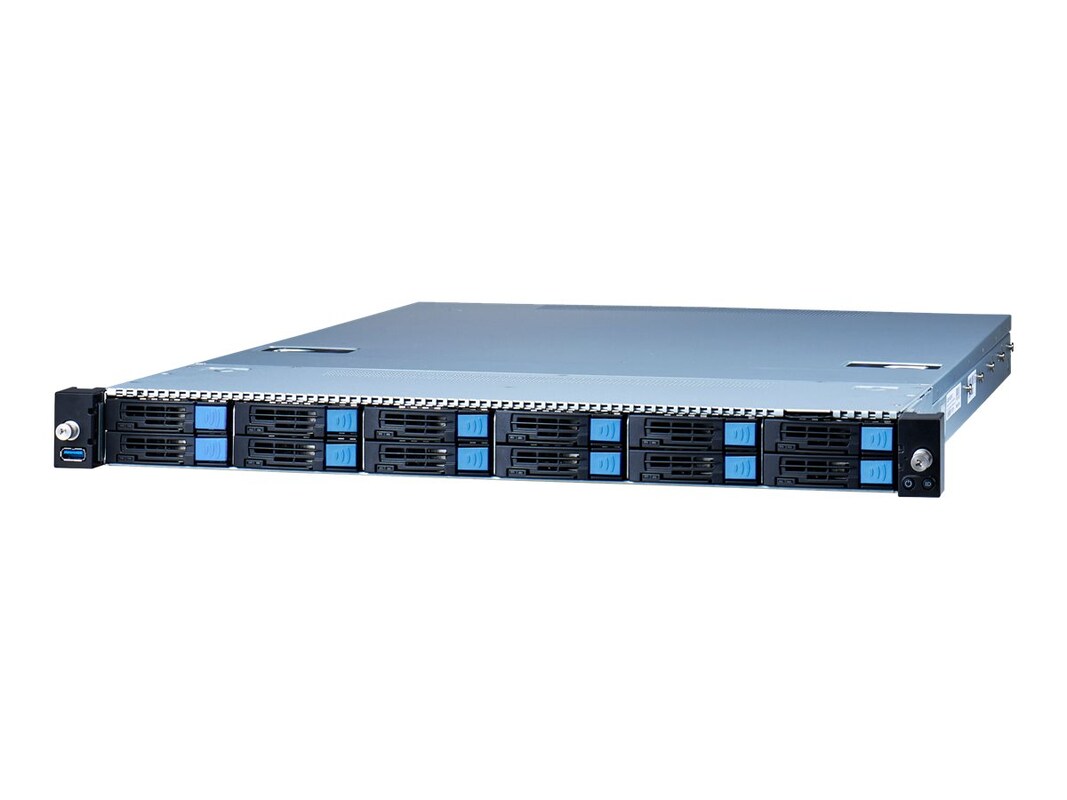

The Tyan Transport CX GC79A-B8252 server provides excellent support for organizations doing IO-heavy computing. The GC79A-B8252 works well for scaleup applications requiring high storage input/output operations per second (IOPS) or large core count and memory footprint due to the large number of NVMe bays and Dual in-line Memory Module (DIMM) slots. The GC79A-B8252 is ideal for high-density data center deployment with a variety of memory-based computing applications.
The Transport CX GC79A-B8252 is a 1U dual-socket server platform that features 32 DDR4 DIMM slots, a pair of standard PCIe Gen.4 x16 expansion slots, as well as an OCP 3.0 LAN mezzanine slot. With large memory footprints, the system provides fast access to data on storage that users can use to make actionable results from the dataset.
The GC79A-B8252 platform offers twelve 2.5-inch drive bays with up to twelve NVMe U.2 support. The system accommodates two internal NVMe M.2 slots for secure boot drive installation. NVMe offers much higher IOPS performance than previous SATA storage devices, including SATA SSDs. Servers with large amounts of direct attached NVMe storage solve many IO bound application performance limitations. In addition, the system provides AST2500 BMC with Redfish support.
The Transport CX GC79A-B8252 is a 1U dual-socket server platform that features 32 DDR4 DIMM slots, a pair of standard PCIe Gen.4 x16 expansion slots, as well as an OCP 3.0 LAN mezzanine slot. With large memory footprints, the system provides fast access to data on storage that users can use to make actionable results from the dataset.
The GC79A-B8252 platform offers twelve 2.5-inch drive bays with up to twelve NVMe U.2 support. The system accommodates two internal NVMe M.2 slots for secure boot drive installation. NVMe offers much higher IOPS performance than previous SATA storage devices, including SATA SSDs. Servers with large amounts of direct attached NVMe storage solve many IO bound application performance limitations. In addition, the system provides AST2500 BMC with Redfish support.
-
Chassis Form Factor: Rack-mountableColor: BlackForm Factor: DIMM 288-pinPrinter Type: NoneSystem Type: ServerWarranty Period: 3-year warrantyWeight Taxonomy: 33.07lbs
-
Memory Attributes: 3DS Load-Reduced DIMM (LRDIMM)Memory Attributes: 3DS RegisteredMemory Attributes: 8-channel memory architectureMemory Attributes: Load-Reduced DIMM (LRDIMM)Memory Attributes: RegisteredRAM (installed): 0GBRAM Technology: DDR4 SDRAM
-
OS Provided: No operating system
-
CD/DVD Type: None
-
# Power Supplies Installed: 2# Power Supplies Supported: 2Power Provided: 1200
-
# Processors Supported: 2Processor Type: No CPUProcessor Upgradability: Upgradable
-
Networking Protocol: ACPI supportNetworking Protocol: KVM over IP supportNetworking Protocol: PXE via LANNetworking Protocol: Wake on LAN (WoL)Remote Management Protocol: IPMI 2.0
-
This product is subject to our return policy. Please see our complete return policy for details.
-
33.5 lbs
-
Compliant Standards: ACPI 6.1Compliant Standards: CBCompliant Standards: C-Tick Class ACompliant Standards: DOC-ACompliant Standards: FCC SDOC Class ACompliant Standards: LVDCompliant Standards: RoHS 6/6Compliant Standards: SMBIOS 3.0Compliant Standards: VCCI Class A
-
Hard Drive Type: NoneStorage Controller Type: Serial ATA
-
43211501
-
Display Technology: None.Video Card: ASPEED AST2500
-
