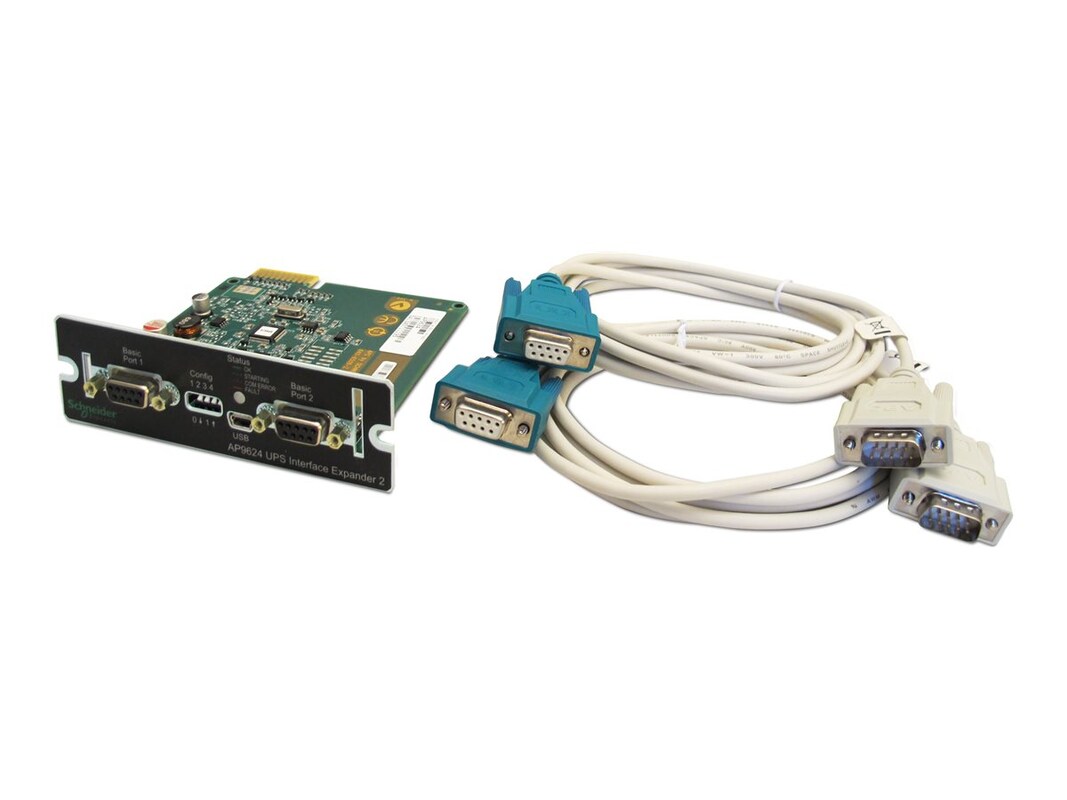

The UPS Interface Expander 2 (AP9624) from APC by Schneider Electric provides two additional computer interface ports for a UPS equipped with a SmartSlot accessory slot. This enables the UPS and your power management software to provide a graceful system shutdown for up to three network servers or other devices during an extended power outage.
The Interface Expander 2 draws power from the UPS in order to monitor the UPS and report power conditions such as on-battery and low battery events whether the UPS is receiving AC utility power or not.
The Interface Expander 2 draws power from the UPS in order to monitor the UPS and report power conditions such as on-battery and low battery events whether the UPS is receiving AC utility power or not.
-
0.15 lbs
-
AP9624 Features
UPS Compatibility - Compatible with all Smart-UPS as well as the Symmetra Power Array, LX and RM UPS ranges.
Additional Device Shutdown - Supports graceful shutdown for up to two additional devices such as servers and network storage devices connected serially.
Graceful Shutdown Support - Supports graceful shutdown of additional devices connected to the two simple signaling ports using PowerChute Business Edition.
USB mini B port for Firmware Upgrade - The UPS Interface Expander 2 firmware can be upgraded using the USB mini B port
PowerChute Business Edition OS Compatibility - This software supports numerous operating systems and processors.
Conformance
Regulatory Approvals: C-tick, CE, EN 55022 Class A, EN 55024, FCC Part 15 Class A, IEC 62040-2, Industry Canada
Sustainable Offer Status: RoHS Compliant
REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: Contains Lithium Coin Cell
Other Environmental Compliance: China RoHS -
Connectivity Technology: WiredSlot Type: SmartSlot
-
SmartSlot card, RS-232 configuration cable, documentation
-
Color: BlackForm Factor: Plug-in moduleProduct Type: Interface converterWarranty Period: 2 yearsWeight Taxonomy: 2.47oz
-
Networking Type: Remote management adapter
-
1.5"h x 4.75"w x 4.5"d
-
Networking Protocol: RS-232
-
This product has a limited return policy. For defective returns, technical issues and support please contact APC directly at 800-555-2725. Defective units should be replaced through APC directly. Visit http://www.apc.com/us/en/support/contact-us for APC warranty details and contact information.
-
0.9 lbs
-
Compliant Standards: CECompliant Standards: China RoHSCompliant Standards: C-TickCompliant Standards: EN 55022 Class ACompliant Standards: EN55022 Class ACompliant Standards: EN55024Compliant Standards: FCC Part 15 ACompliant Standards: ICCompliant Standards: IEC 62040-2Compliant Standards: REACHCompliant Standards: RoHS
-
39121000
