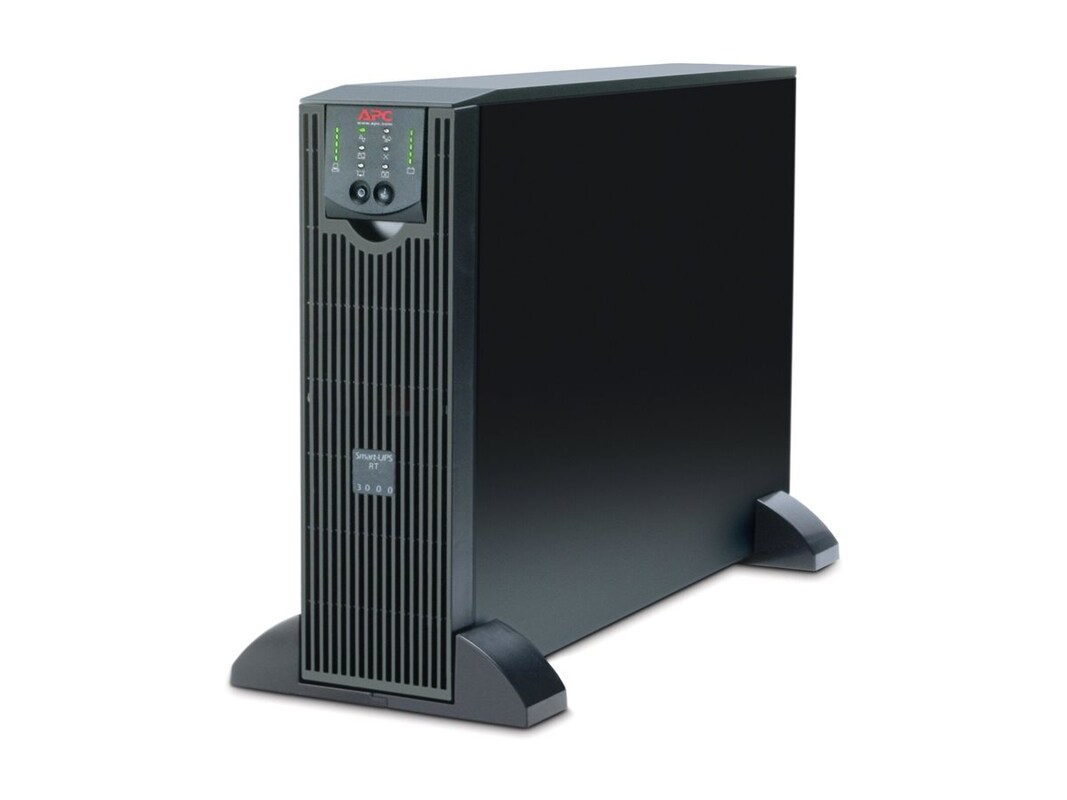

APC Smart-UPS RT 3000VA 2100W 120V UPS L5-30P Input 8ft Cord (6) 5-15R (2) 5-20R Outlets (SURTA3000XL)
-
Limited Quantity Available
- Call for next available delivery
Performance power protection with scalable runtime for space-constrained computer rooms, and voice and data networks.
Ordering Information
$3,755.81
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Featuring double conversion on-line topology, the Smart-UPS RT protects your data by supplying reliable, network-grade power. An unlimited number of matching battery packs can be added to comply with aggressive runtime demands of "always on" business-critical systems. Rack-optimized models are an ideal choice for space constrained environments. With capacity up to 10kVA in a convenient rack-mountable 6U form, users can support power hungry blade servers or heavily loaded equipment racks. Customers looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction will find them in the Smart-UPS RT.
-
120.00 lbs
-
# Ports: 8Communication Interface: Serial (RS-232)Connector: Power NEMA 5-15 (F)Connector: Power NEMA 5-20 (F)Connector: Power NEMA L5-30Connector: Power NEMA L5-30 (M)
-
UPS, CD with software, Smart UPS signalling RS-232 cable, user manual
-
Attributes: Double conversion onlineColor: BlackEnclosure Type: Plug-in moduleForm Factor: 3U RackmountForm Factor: ExternalWarranty Period: 2 yearsWeight Taxonomy: 120.37lbs
-
5.1"h x 17"w x 26"d
-
(6) NEMA 5-15 outlets
(2) NEMA 5-20 outlets
(1) NEMA L5-30, 10ft cord
(1) DB9 RS-232 management port
(1) Smart Slot -
Battery Run Time (max): 14.1minPower Capacity (VA): 3000VAPower Provided: 2.1kWSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 120V
-
Output power capacity: 3000VA
Output power capacity: 2100W
Max Configurable Power: 3000VA
Max Configurable Power: 2100W
Nominal output voltage: 120V
Output Voltage Distortion: less than 3%
Output Frequency (sync to mains): 50/60Hz
Crest Factor: 3 : 1
Waveform type: Sinewave
Bypass: Internal Bypass (Automatic and Manual)
Nominal input voltage: 120V
Input frequency: 50/60Hz
Input voltage range for main operations: 90 - 150V
Maintenance-free sealed Lead-Acid battery with suspended electrolyte
Battery Modules Shipped with Unit: 2
Replacement battery cartridge: RBC44
RBC Quantity: 1
Typical backup time at half load: 33.9 minutes (1050 Watts)
Typical backup time at full load: 14.1 minutes (2100 Watts)
Surge energy rating: 480 Joules -
This product is subject to our return policy. Please see our complete return policy for details.
-
146 lbs
-
Compliant Standards: CSACompliant Standards: FCC Class A certifiedCompliant Standards: UL 1778
-
39121011
