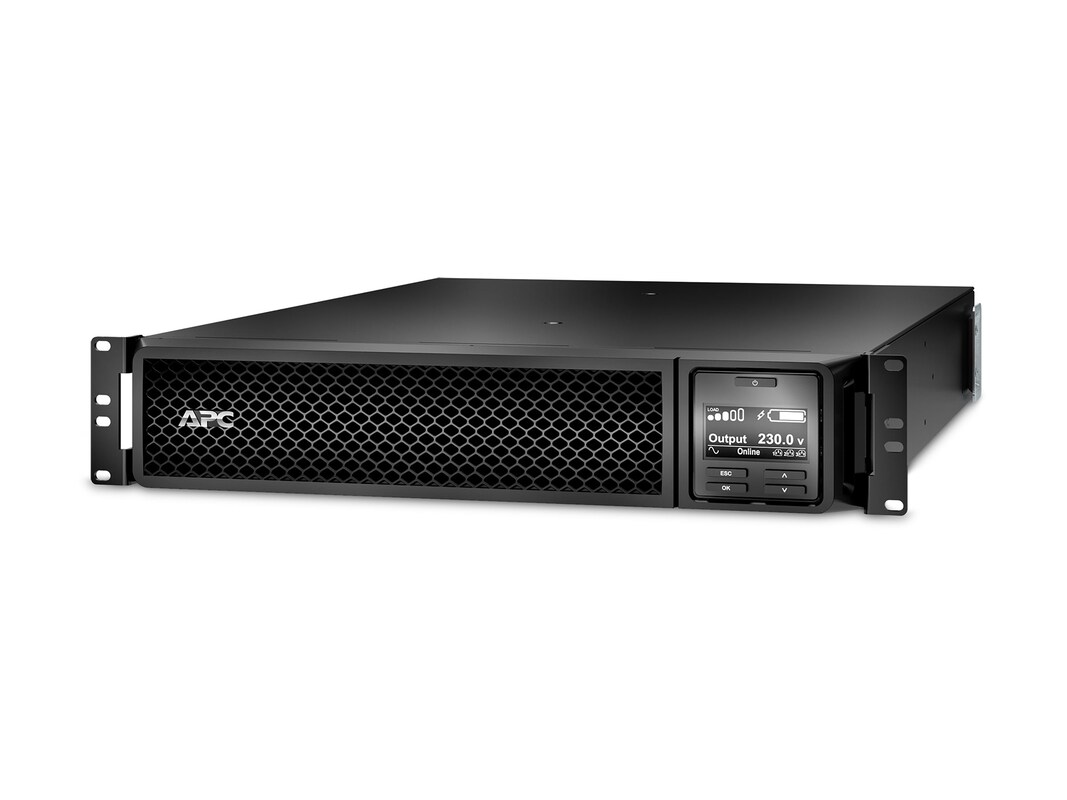

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice/data networks, medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass and input power factor correction.
-
69.00 lbs
-
SRT3000RMXLW-IEC Features
LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment. -
# Ports: 8Communication Interface: Serial (RS-232)Communication Interface: USBConnector: 2 x IEC jumpersConnector: 2 x power IEC 60320 C19Connector: 6 x power IEC 60320 C13Connector: IEC jumperConnector: Power BS 1363AConnector: Power IEC 320 EN 60320 C13 (F)Connector: Power IEC 320 EN 60320 C19 (F)Connector: Power IEC 320 EN 60320 C20 (M)Connector: Power IEC 60320 C13Connector: Power IEC 60320 C19Connector: Power Schuko CEE 7 EU1-16 (M)
-
UPS, software CD, rack mounting brackets, rack mounting support rails, USB cable, documentation
-
Attributes: Double conversion onlineColor: BlackForm Factor: 2U RackmountForm Factor: Rack-mountableWarranty Period: 3 yearsWeight Taxonomy: 69lbs
-
3.4"h x 17"w x 25"d
-
Output Connections: (6) IEC 320 C13, (2) IEC 320 C19, (2) IEC Jumpers
Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Cord Length: 8 feet (2.44 meters) -
Battery Run Time (max): 4minPower Capacity (VA): 3000VAPower Provided: 2700Power Provided: 2700WSurge Suppression: StandardSurge Suppression: YesVoltage Provided: AC 208/230V
-
Output
Output Power Capacity: 2700 Watts / 3000 VA
Max Configurable Power: 2700 Watts / 3000 VA
Nominal Output Voltage: 208V, 230V
Output Voltage Note: Configurable for 220V, 230V or 240V nominal output voltage
Output Voltage Distortion: Less than 2%
Output Frequency (sync to mains): 50/60Hz +/- 3Hz
Other Output Voltages: 220V, 240V
Crest Factor: 3:1
Topology: Double Conversion Online
Waveform Type: Sine wave
Bypass: Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage: 208V, 230V
Input Frequency: 40-70Hz (auto sensing)
Input voltage range for main operations: 160 - 275V
Input voltage adjustable range for mains operation: 100 - 275V (half load)
Other Input Voltages: 220, 240V
Batteries & Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Included Battery Modules: (1)
Typical recharge time: 3 hours
RBC Quantity: (1)
Runtime, Full Load: 4.0 minutes (2700W)
Runtime, Half Load: 11.6 minutes (1350W)
Surge energy rating: 340 Joules -
This product is subject to our return policy. Please see our complete return policy for details.
-
88 lbs
-
Compliant Standards: CECompliant Standards: CSACompliant Standards: CSA C22.2 No. 107.3Compliant Standards: EACCompliant Standards: EN 62040-2Compliant Standards: Energy StarCompliant Standards: FCC Part 15 ACompliant Standards: IEC 62040-1Compliant Standards: IEC 62040-2Compliant Standards: IP20Compliant Standards: RCMCompliant Standards: RoHSCompliant Standards: UL 1778Compliant Standards: VDE
-
