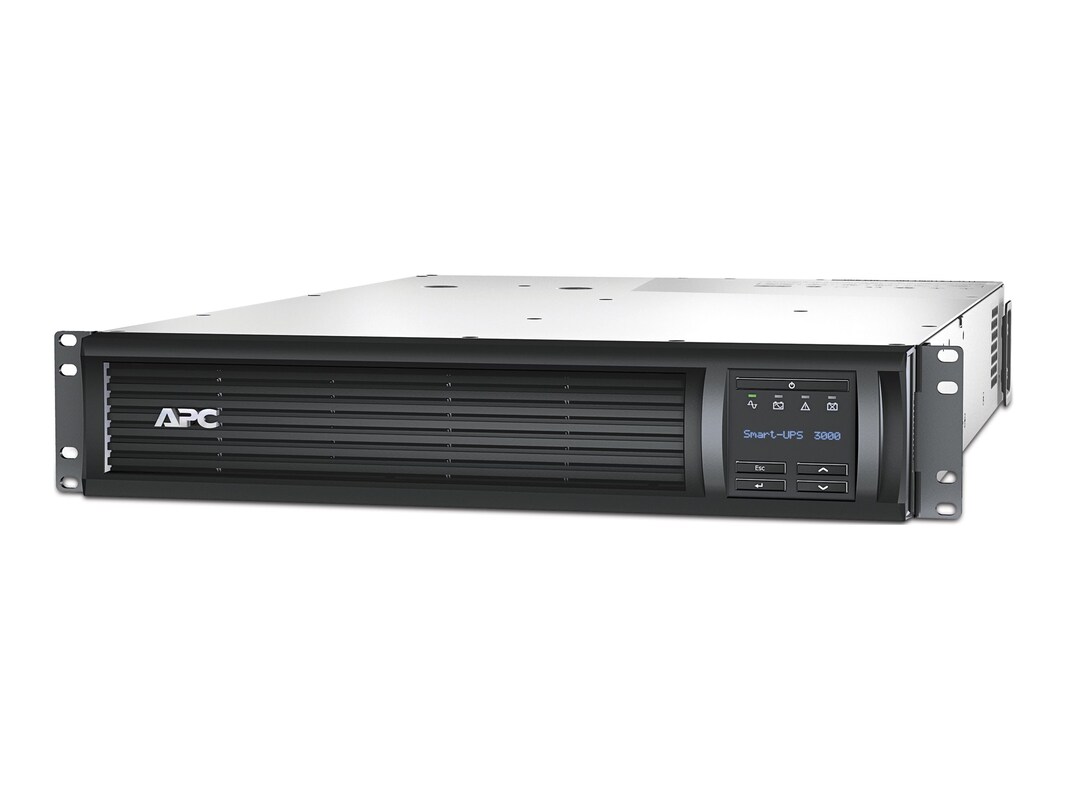

APC Smart-UPS 3000VA 2700W 120V LCD 2U RM UPS (6) 5-15R (2) 5-20R (SMT3000Rmus)

112.00 lbs

Features

Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency - Reduces utlility costs, generates less heat.
SmartSlot - Customize UPS capabilities with management cards.
Cold-start capable - Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.

Communications & Management

Interface Ports: SmartSlot
Available SmartSlot Interface Quantity: (1)
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays

Conformance

Regulatory Approvals: cUL Listed, ENERGY STAR (USA), UL 1778
Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery
Equipment protection policy Lifetime: $150,000

Sustainable Offer Status

RoHS: Compliant
REACH: Contains No SVHCs

UPS, CD with software, rack mounting hardware, rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable, documentation

17"h x 7.7"w x 21.4"d

Output Connections: (6) NEMA 5-15R, (2) NEMA 5-20R
Input Connection: NEMA L5-30P
Cord Length: 8 feet (1.83 meters)

Output

Output Power Capacity: 2880 Watts / 2700 VA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60Hz +/- 3Hz
Topology: Line Interactive
Waveform Type: Sine wave

Input

Nominal Input Voltage: 120V
Input Frequency: 50/60Hz +/- 3Hz (auto sensing)
Input voltage range for main operations: 82-144V
Input voltage adjustable range for mains operation: 75-154V

Batteries & Runtime

Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte; leakproof
Typical recharge time: 3 hours
Replacement Battery: RBC43
RBC Quantity: (1)
Battery backup runtime, half load: 11.7 minutes (1350W)
Battery backup runtime, full load: 3.4 minutes (2700W)

Surge Protection and Filtering

Surge energy rating: 459 Joules

This product is subject to our return policy. Please see our complete return policy for details.

114 lbs

39121011
