Altronix Access Power Controller w Power Supply Charger, 8 Fused Relay Outputs

Print page
Item#: 36026739 // MFG Part#: AL600ACM220 // By: Altronix

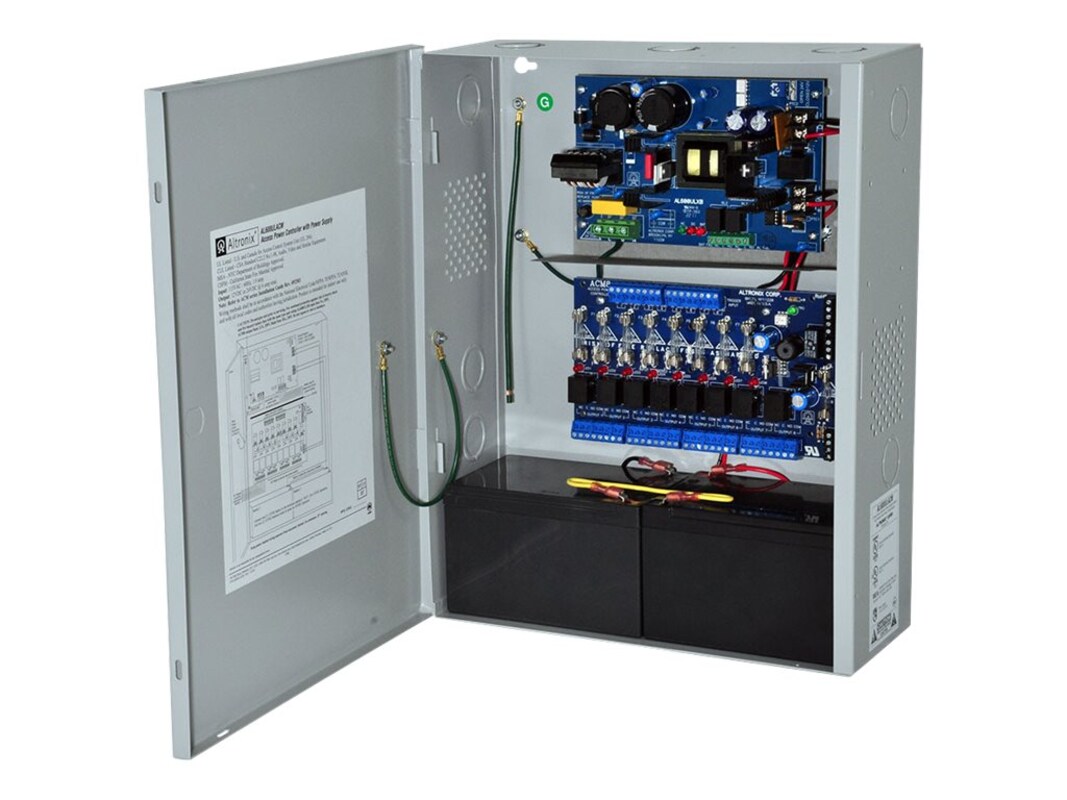

Altronix AL600ACM220 Main Image from Right-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • Temporarily Out-of-Stock
  • Call for next available delivery
Ordering Information
$405.72
Qty:
AL600ACM220 converts a nominal 220 VAC 50/60 Hz input into eight independently controlled 12 VDC or 24 VDC Fail-Safe and/or Fail-Secure outputs with a total of 6 A continuous supply current. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock/accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices.
