StarTech.com 1x DB25 1x RS232 PCIe Combo Adapter Card with Serial and Parallel Port

Print page
Item#: 41237078 // MFG Part#: PEX1S1P950 // By: StarTech.com

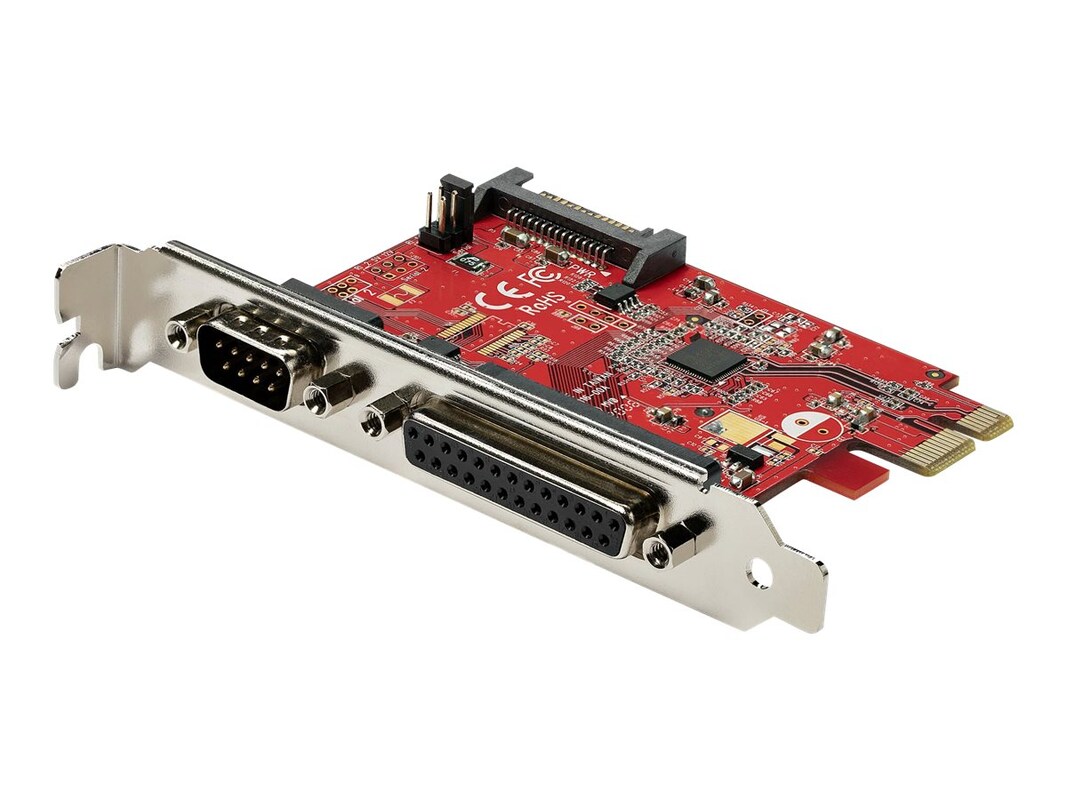

StarTech.com PEX1S1P950 Main Image from Right-angle
Rollover to Zoom
NOTE: Images may not be exact; please check specifications.
  • In Stock
  • Ships in 1-2 Business Days
Ordering Information
$45.51
Qty:
  • PCIe Card with Serial and Parallel Port
  • 1x DB25 parallel 1x RS232 Serial combo card
  • Up to 2.5Mbps (DB25)/up to 921.6Kbps (DB9)
  • SPP/Byte/ECP mode
  • Asix AX99100
  • PCI-e Base 1.1/PCI Power Management 1.2
  • PCI Express 2.0
  • Full-profile PCIe x1
  • DB25DB9 Connector(s)
  • PCI Express 2.0 x1PCI-Express 2.0 Serial adapter, Parallel adapter
  • Compatible OS: Linux 2.4.x - 2.6.x LTS versions only, Microsoft Windows 7
  • 8
  • 8.1
  • 10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 8.1, Microsoft Windows 10, Microsoft Windows 7, Microsoft Windows 8, Linux 2.4.x to 2.6.x LTS versions only
  • Parallel, RS-232, IEEE 1284 parallel Protocol(s)
  • FCC, RoHS, WHQL, CE Compliant
The Asix AX99100 chip also enables you to connect a DB9 device using the same controller card, compatible with industry standard 16950 UART. The serial port is ideal for connecting point of sale terminals, serial printers, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners and oscilloscopes. The serial (COM) port supports bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit. The card also features an optional SATA power input that enables you to add power to pin 9 on the serial port, and adjusted the power output between 5V and 12V using a jumper on the PCB.

This add-on card installs in a full/standard-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (7 or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
