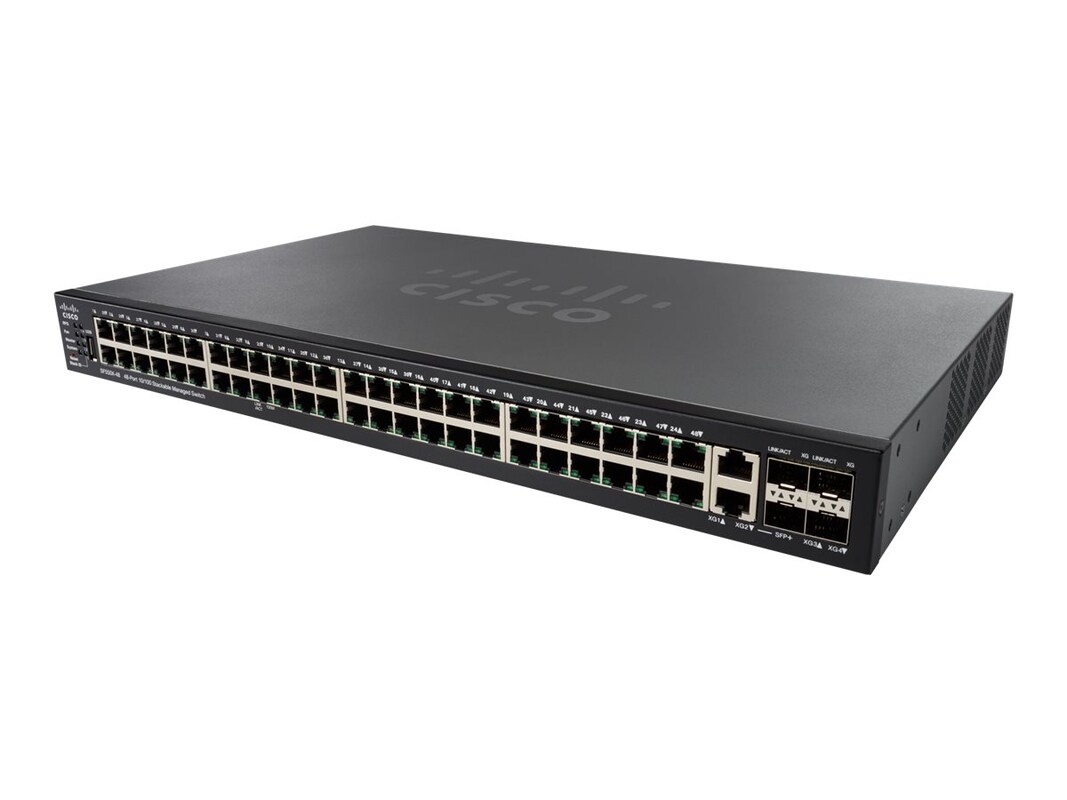

The Cisco SF550X-48-K9-NA Switch is the next-generation stackable managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price.
This switch incorporates fan and power hardware redundancy while increasing overall network availability.
This switch incorporates fan and power hardware redundancy while increasing overall network availability.
-
7.80 lbs
-
# Ports: 2# Ports: 4# Ports: 48
-
Switch, serial cable, rack mounting kit, power supply, documentation
-
Chassis Form Factor: 1U RackmountColor: BlackForm Factor: Rack-mountableWarranty Period: Limited lifetimeWeight Taxonomy: 7.8lbs
-
Specifications:
Forwarding performance (64-byte packet size): 66.66Mpps
Switching capacity: 89.6Gbps
VLANs supported: 4094
QoS hardware queues: 8
IPv4 routes (static): 7000
IPv6 routes (static): 7000
ACL rules: 3000
IP router interfaces: 256
QoS hardware queues: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9000 bytes
Max Units In A Stack: 8 -
RAM (installed): 256MBRAM (installed): 512MBRAM Technology: FlashRAM Technology: RAM
-
X ARM 800MHz processor
512MB RAM
256MB Flash memory -
Networking Type: Switch
-
1.7"h x 17.3"w x 10.1"d
-
I/O:
(48) 100Base-TX RJ-45
(4) 10GBase-X SFP+ uplink
(2) 10GBase-T RJ-45 uplink
(1) RJ-45 console
(1) USB Type-A
(1) Power in -
# Power Supplies Installed: 1
-
(1) Internal power supply
1+1 power redundancy
Voltage required: 120 to 230V AC, 50 to 60Hz
Operational power consumption: 35.9W -
# Processors Installed: 1Processor Manufacturer: ARMProcessor Speed: 800MHz
-
Networking Protocol: ACLNetworking Protocol: ARPNetworking Protocol: BOOTPNetworking Protocol: CoSNetworking Protocol: DHCPNetworking Protocol: DSCPNetworking Protocol: ICMPNetworking Protocol: IEEE 802.1ab (LLDP)Networking Protocol: IEEE 802.1DNetworking Protocol: IEEE 802.1pNetworking Protocol: IEEE 802.1QNetworking Protocol: IEEE 802.1sNetworking Protocol: IEEE 802.1S (MSTP)Networking Protocol: IEEE 802.1WNetworking Protocol: IEEE 802.1w (RSTP)Networking Protocol: IEEE 802.1xNetworking Protocol: IEEE 802.3Networking Protocol: IEEE 802.3abNetworking Protocol: IEEE 802.3ad (LACP)Networking Protocol: IEEE 802.3anNetworking Protocol: IEEE 802.3azNetworking Protocol: IEEE 802.3uNetworking Protocol: IEEE 802.3xNetworking Protocol: IEEE 802.3zNetworking Protocol: IGMPNetworking Protocol: IGMP v2Networking Protocol: IGMP v3Networking Protocol: IPv4Networking Protocol: IPv6Networking Protocol: QOSNetworking Protocol: RIPNetworking Protocol: SSHNetworking Protocol: SSLRemote Management Protocol: CLIRemote Management Protocol: HTTPRemote Management Protocol: HTTPSRemote Management Protocol: RMONRemote Management Protocol: SCPRemote Management Protocol: SNMP 1Remote Management Protocol: SNMP 2cRemote Management Protocol: SNMP 3Remote Management Protocol: SSHRemote Management Protocol: SSH-2Remote Management Protocol: SYSLOGRemote Management Protocol: TelnetRemote Management Protocol: TFTPRouting Protocol: CIDRRouting Protocol: IGMPRouting Protocol: IGMPv2Routing Protocol: IGMPv3Routing Protocol: MLDRouting Protocol: MLDv2Routing Protocol: Policy-based routing (PBR)Routing Protocol: RIP-2Routing Protocol: Static IPv4 routingRouting Protocol: Static IPv6 routingRouting Protocol: VRRPv2Routing Protocol: VRRPv3
-
Due to manufacturer restrictions, all sales on this item are final.
-
9.75 lbs
-
Compliant Standards: CSA 22.2Compliant Standards: FCC CFR47 Part 15 ACompliant Standards: FCC Part 15 ACompliant Standards: UL 60950Compliant Standards: USGv6
-
