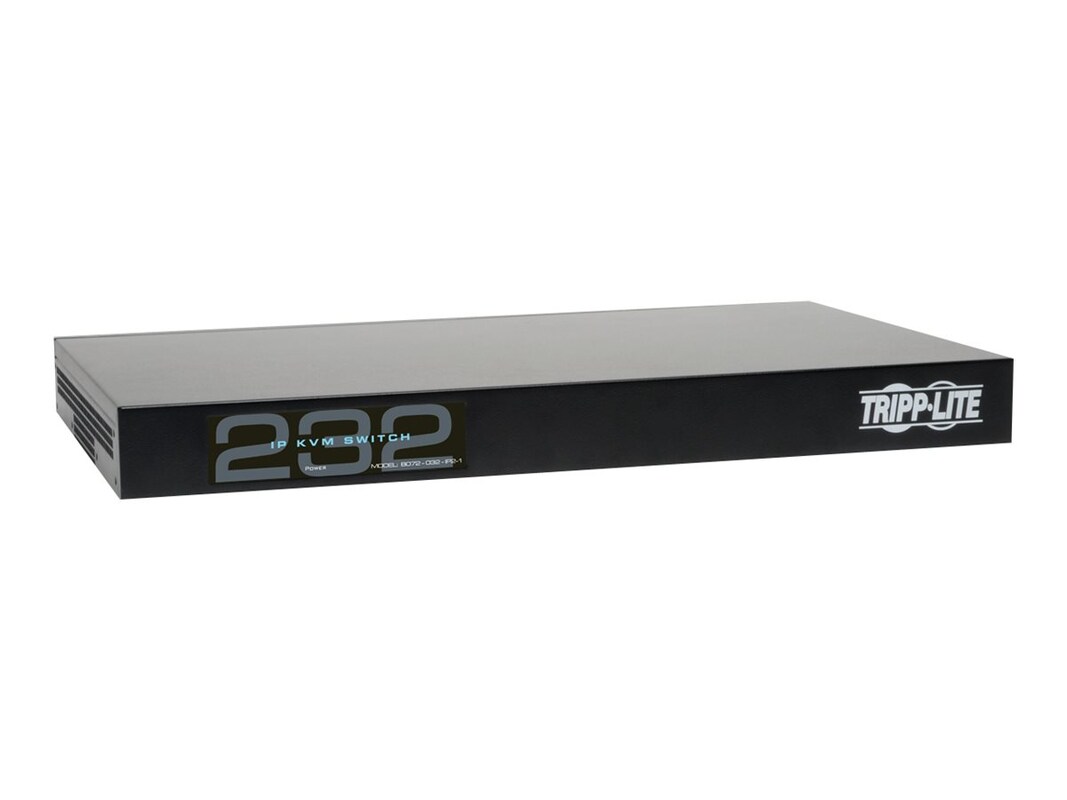

Tripp Lite 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch w (16) USB Dongles

7.75 lbs

Key Features

Directly connect up to 32 computers/servers. 1 Local User, 2 Remote IP Users
16 USB Dongles included ( B078-101-USB-1 )
Connected computers/servers can be located up to 100 ft. (30 m.) away from the KVM using inexpensive Cat5e/6 cabling and/or SIUs.
Supports HD video resolutions up to 1920 x 1080, including widescreen formats such as 1680 x 1050 and 1600 x 1200
Supports up to 2 simultaneous remote sessions.
In addition to multiple remote sessions, a local user can access the KVM simultaneously to the remote users.
Java-based application allows for control of a target server via web browser from any location over a secure IP connection.
Remote authentication support - RADIUS and LDAP/S
Supports both IPv4 and IPv6
Accessing the connected computers is a breeze; a wide range of video and mouse sync settings ensure optimal remote session performance in any situation.
Virtual Media allows an .iso file located in a Shared folder of a SAMBA or NFS server that is accessible to the KVM to be mounted to a Target Server and accessed as if it were directly stored on it. (Virtual Media requires that a B078-101-USB-1 be connected to each computer on which it is needed)
Supports the highest security standards for encryption (128-bit AES and HTTPS).
BIOS level control to any server's brand and model, regardless of the server condition and network connectivity. Covers the entire spectrum of crash scenarios.
PDU Control – Allows you to add IP PDU's as devices that can be controlled by the KVM. Individual ports on the KVM can be assigned to a port on a PDU, allowing you to Power Cycle or Power Off/On the computer/server connected to that port without leaving the KVM session screen.
Multi-Level account access – Administrator and User accounts can be created, with a password being required to access the KVM switch and your assigned permissions. Administrator accounts have full access, while User accounts can be set up to access only the ports and features necessary to that individual.
Dual Ethernet Ports – If one network port fails, the other takes over.
Dual Power Supplies – If one power supply fails, the other takes over.
Dual Serial Ports – Connect serial manageable devices, such as PDUs, firewalls, and routers.
Allows for system sent messages to SNMP server to notify of LAN or power failures.
Event log records events that take place on the installation, such as logins, reboots, network settings changes, etc..
Allows for the installation of a SSL certificate to ensure secure transactions between the Web servers and browsers.
Access and control the KVM via the graphical remote interface, or a text based local OSD.
Flash upgradeable firmware over the network.

Specifications

Number of Users: (3)
Port Control: Hotkeys, OSD
PC/Server: USB; PS/2; VGA
Cat5 KVM Switch: Yes
IP Remote Access: Yes, built in

CERTIFICATIONS

Approvals: UL 60950-1 (USA), CSA (Canada), FCC Part 15 Class A, CE IEC 60950-1, RoHS

KVM switch, (16) USB dongles, rackmount hardware, (2) power cords, documentation

1.7"h x 17.3"w x 11"d

CONNECTIONS

Ports: (32)
Computer/Server Ports: (32) RJ-45 Female
Local Console Ports - Port 1: HD15 Female
Local Console Ports - Port 2: (2) USB A Female

This product is subject to our return policy. Please see our complete return policy for details.

14.08 lbs

Connected Computers/Servers

PS/2 and USB keyboard/mouse ports
HD15 (VGA) port
Supports Windows and Linux Operating Systemsemote Console Computers
Pentium 4 with 2GB memory
Supports Windows and Linux Operating Systems

Remote Console Computers

Windows Operating Systems can remotely access the KVM via Internet Explorer, Firefox, or Chrome browsers
Linux Operating Systems can remotely access the KVM via Firefox or Chrome browsers
