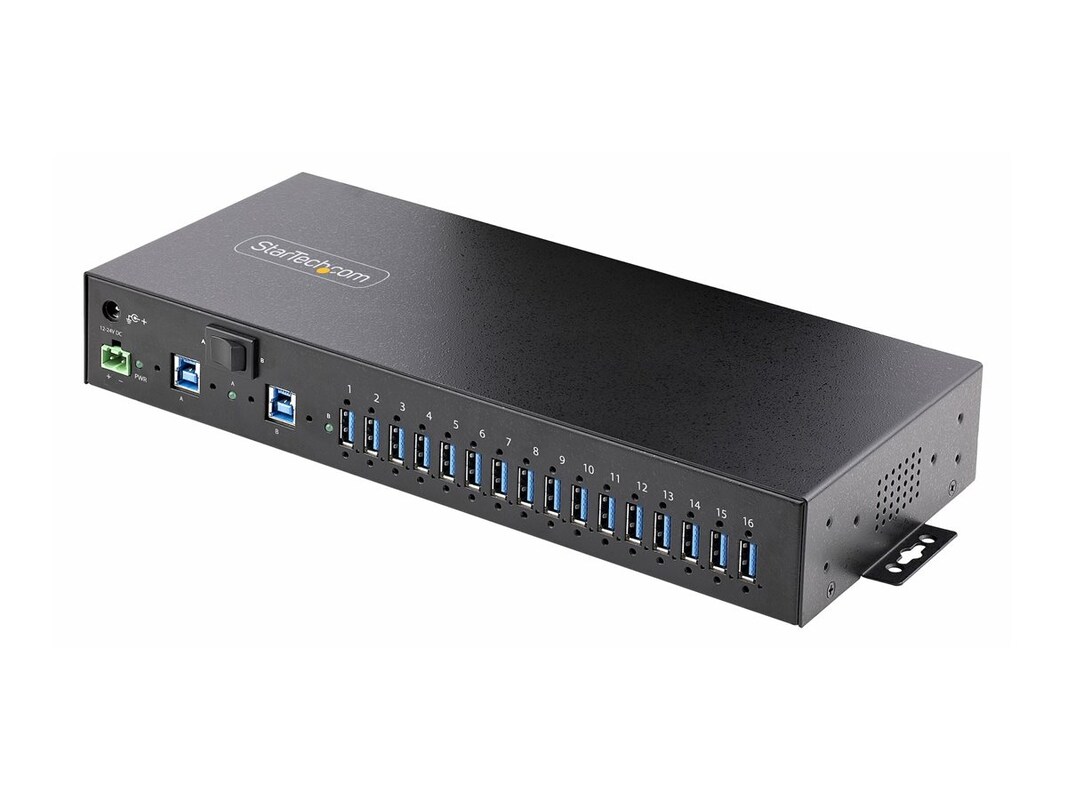

StarTech.com 16-Port Mountable Industrial USB 5Gbps Hub w Power Adapter, Metal Enclosure, ESD Protection, TAA
-
In Stock
- Ships in 24-48 Hours
Add to Cart
Messages
Loading
-
:
Quick View
Getting Details
The 16-Port Industrial USB 5Gbps Hub with Power Adapter features 16 downstream USB-A ports. The rugged all-metal construction is suitable for use in industrial rackmount applications. Level-4 Electrostatic Discharge (ESD) protection safeguards against 15kV Air / 8kV Contact discharges. The hub features a 2-port host switch, enabling users to switch between two host devices.
This USB hub is built to withstand harsh industrial environments. It features a rugged steel housing that protects against physical hazards such as drops and impacts. It is equipped with Level-4 ESD protection, with 15kV air and 8kV contact discharge ratings, to safeguard against damage caused by static electricity.
The 16-Port USB hub can be attached to a surface (e.g., atop/underneath a desk or wall mounted), rack mounted, or DIN-rail mounted. The 19" rackmount rails are compliant with EIA-310-D standards, ensuring compatibility with standard racks. These rails can be used to install the USB hub into 1U of rack space for applications in data centers and server rooms. Mount industrial automation and control equipment in an electrical enclosure or cabinet, using the standard DIN-rail (Top Hat/TH) mounting hardware.
This USB hub includes a 160W power adapter that connects to the 2-wire terminal block connector. When connected to the power adapter, the USB hub supports USB Battery Charging Specification 1.2 (BC 1.2) with 120W shared across all ports. Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports a maximum of 3.0A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.
For optional power redundancy, the USB hub features a secondary power input where a barrel-power adapter (not included) can be connected. The barrel-power input supports a 12-to-24-volt input range, and can be ideal for mission critical applications.
The USB Hub connects to two desktop or laptop computers, and features a dual-host switch enables easy toggling between the host devices.
-
2.40 lbs
-
16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download)
FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections
INCLUDED 160W POWER ADAPTER: The rugged USB Hub is powered by the included power adapter using the built-in DC 2-wire terminal block; Overcurrent protection protects connected devices from overdrawing power; DC barrel jack for optional power redundancy
POWER & CHARGE: When connected to the power adapter, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging
DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch
-
# Ports: 16Connector: Terminal blockConnector: USB Type AConnector: USB Type BConnector Type: USB 3.2 Gen 1
-
hub, USB-A to USB-B cable, terminal block connector, (2) DIN rail mounting brackets w/ screws, power adapter, documentation
-
Color: BlackForm Factor: DesktopForm Factor: DIN rail mountableForm Factor: Rack-mountableForm Factor: Wall-mountableWarranty Period: 2 yearsWeight Taxonomy: 2.43lbs
-
Networking Type: Hub
-
Data Transfer Rate: 5Gbps
-
(1) terminal block
(1) barrel power (Size M)
(16) USB 3.2 Type A
(2) USB 3.2 Type B
-
Power Provided: 160Voltage Provided: DC 24V
-
Supply: 100-240VAC
Consumption: 158.4W (typ.)
-
# Processors Installed: 1Processor Manufacturer: Genesys LogicProcessor Model Number: GL3523
-
Networking Protocol: Battery Charging 1.2Networking Protocol: USB 3.0Networking Protocol: USB 3.2 Gen 1
-
This product is subject to our return policy. Please see our complete return policy for details.
-
0 lbs
-
Compliant Standards: TAACompliant Standards: Yes
-
Available USB 3.2 Gen 1 Port
USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0
Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.
-
