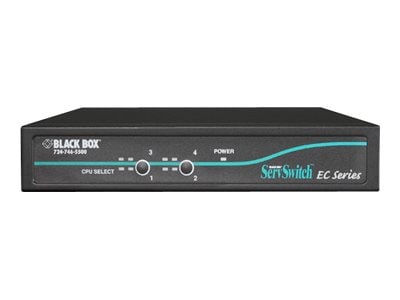

The ServSwitch EC for PS/2 and USB Servers and USB Consoles allows you to use a USB keyboard and mouse to control a number of PS/2 or USB servers. Where you have a mix of servers and console control devices, this ServSwitch has a rear-panel slide switch that you use to select either PS/2 or USB console mode. To expand your switching platform to include additional servers, simply cascade units in a master-slave configuration.
NOTE: This 4-port model is for USB control consoles only.
NOTE: This 4-port model is for USB control consoles only.
-
2.00 lbs
-
AutoScan intervals: 3, 8, 15, 30 seconds
Cable length (maximum) at console: 20 ft. (6 m)
Cable length (maximum) at PC ports for PS/2 server: 30 ft. (9.1 m)
Cable length (maximum) at PC ports for USB server: 15 ft. (4.5 m)
Operating systems supported: Windows 98/Me/XP, Windows NT, Windows 2000
Resolution (maximum): 1920 x 1440
User controls: (4) port selection buttons
-
# Ports: 4
-
Unit, power adapter, foot pads, documentation
-
Form Factor: DesktopWarranty Period: 1-year warrantyWeight Taxonomy: 1.98lbs
-
Networking Type: KVM switch
-
1.75"h x 8.6"w x 5.1"d
-
Connectors:
Server: (4) HD15 F
Console:
Keyboard: (1) USB Type A F
Mouse: (1) USB Type A F
Monitor: (1) HD15 F
-
Voltage Provided: 9 - 12V
-
Power: 115VAC, 60Hz, external
-
Networking Protocol: On-Screen Display
-
This product is subject to our return policy. Please see our complete return policy for details.
-
4.2 lbs
-
Compliant Standards: DDC-2B
-
OS Required: Microsoft Windows 2000OS Required: Microsoft Windows 98OS Required: Microsoft Windows 98/ME/2000/XPOS Required: Microsoft Windows Millennium EditionOS Required: Microsoft Windows NTOS Required: Microsoft Windows XP
-
43211601
